Product Details:
Payment & Shipping Terms:
|
| Product Name: | Fiber Optical Switch | Operational Temperature:: | 0 ℃ ~ 50 ℃ |
|---|---|---|---|
| Storage Temperature:: | -10 ℃ ~ 60 ℃ | Dimension: | 232mm * 142mm * 45mm |
| Transmission Rate: | 10Mbps : 14880pps , 100Mbps : 148800pps | Switching Mode:: | Store-and-Forward |
| Highlight: | fiber optic network switch,power over ethernet switch |
||

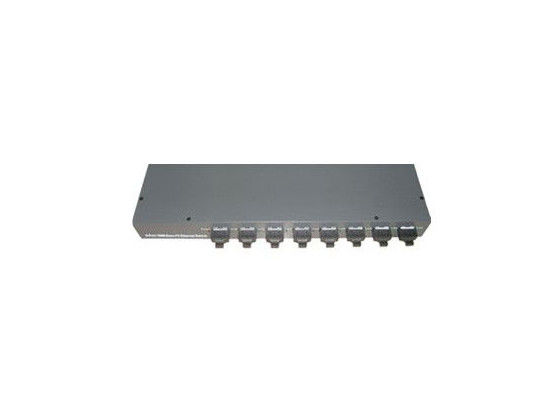

This Fast Ethernet Optical Fiber Switch has eight 100M Fx port. Customer can choose different Fx specification according as his demand, such as Multimode or Single-mode, Single fiber or Dual fiber and Single-mode 20-100km etc. The product is possessed of stable performance, excellent quality and reasonable price. It is applicable to use in constructing of Optical Fiber Ethernet network.
| Standard: | IEEE802.3,IEEE802.3u ,IEEE802.3x |
| Topology | Star |
| Number of Ports | 8-Port 100Base-Fx |
| Uplink Ports | None |
| Transmission Rate | 10Mbps : 14880pps , 100Mbps : 148800pps |
| Switching mode | Store-and-Forward |
| Flow control mode | IEEE 802.3x full-duplex flow control and back pressure flow control |
| LED Indicator | LED status of Link, activity, and power on diagnostic function |
| Cable Support |
10Base-T : 3, 4 or Cat 5 shielded / unshielded twisted pair , 100 meters max. ； 100Base-TX : Cat 5 shielded / unshielded twisted pair , 100 meters max. 100Base-Fx : 8.3μm , 8.7μm , 9μm and10μm on single mode fiber and 50 , 62.5 and 100μm on multi-mode fiber |
| Power supply | AC:220V or DC:-48V |
| Input Voltage: | AC100V-AC240V/50-60Hz |
| Operational Temperature: | 0 ℃ ~ 50 ℃ |
| Storage Temperature: | -10 ℃ ~ 60 ℃ |
| Humidity: | 5%~90% non-condensing |
| Dimensions: |
232mm * 142mm * 45mm |
