Product Details:
Payment & Shipping Terms:
|
| Product Name: | Fiber Optical Switch | Standard:: | IEEE802.3 , IEEE802.3u , IEEE802.3x |
|---|---|---|---|
| Number Of Ports:: | 16-Port 100Base-Fx | Transmission Rate:: | 100Mbps : 148800pps |
| Switching Mode:: | Store-and-Forward | Power Supply:: | AC 100-240V/50-60Hz |
| Highlight: | power over ethernet switch,gigabit ethernet switch |
||

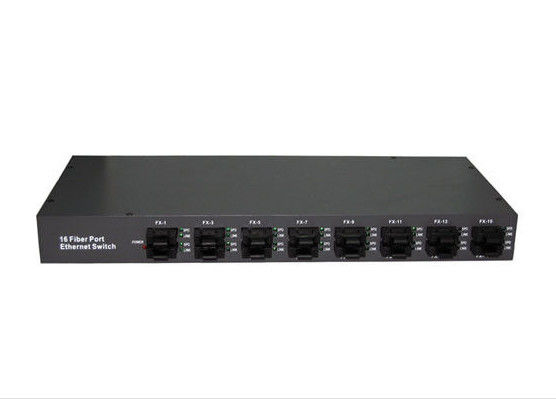

16 - Port Vlan Mac Fiber Optic Switches 10 / 100Base-Fx to 20KM - 100KM
This Fast Ethernet Optical Fiber Switch has sixteen 100M Fx port. Customer can choose different Fx specification according as his demand, such as Multimode or Single-mode, Single fiber or Dual fiber and Single-mode 20-100km etc. The product is possessed of stable performance, excellent quality and reasonable price. It is applicable to use in constructing of Optical Fiber Ethernet network.
Key Features
Specification
| Specification : | |||
| Standard | IEEE802.3 , IEEE802.3u , IEEE802.3x | ||
| Topology | Star | ||
| Number of Ports | 16-Port 100Base-Fx | ||
| Uplink Ports | None | ||
| Transmission Rate | 100Mbps : 148800pps | ||
| Switching mode | Store-and-Forward | ||
| Flow control mode | IEEE 802.3x full-duplex flow control and back pressure flow control | ||
| LED Indicator | LED status of Link, activity, speed, and power on diagnostic function | ||
| Power supply | AC 100-240V/50-60Hz | ||
| Temperature Humidity | Temperature | Humidity | |
| Operation | -20 ℃ to 70 ℃ | 10% to 90% | |
| Storage | -40 ℃ to 75 ℃ | 5% to 95% RH | |
Ordering information
| P/N | Description | - | X | X | X | X |
| FR-SW16F-XXXX | 16-Port 100Base-Fx Fiber Switch |
S: Duplex Single-mode M: Duplex Multi-mode B: Simplex Single-mode |
3: TX 1310nm 4: TX 1490nm 5: TX 1550nm 8: TX 850nm |
S: SC F: FC T: ST L: LC |
05: 550M 2: 2KM 20: 20KM 40: 40KM |
