Product Details:
Payment & Shipping Terms:
|
| Product Name: | Fiber Optical Switch | Operational Temperature:: | 0 ℃ ~ 50 ℃ |
|---|---|---|---|
| Storage Temperature:: | -10 ℃ ~ 60 ℃ | Input Voltage:: | AC100V-AC240V/50-60Hz |
| Port:: | 8 MDI/MDIX RJ45 Prots And 1 Fiber Port | Standard:: | IEEE802.3,IEEE802.3u ,IEEE802.3x |
| Highlight: | fiber optic network switch,power over ethernet switch |
||
10M / 100M UTP Gigabit Ethernet Switch 8 Port With 10 / 100Base-Tx

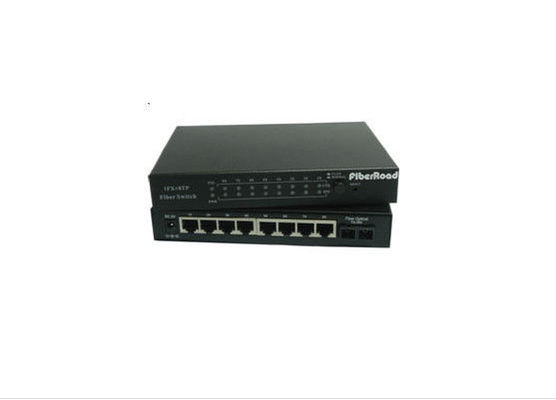

This Fast Ethernet Optical Fiber Switch has one 100M Fx port and eight 10/100M UTP ports. Customer can choose different Fx specification according as his demand, such as Multimode or Single-mode, Single fiber or Dual fiber and Single-mode 20-100km etc. The product is possessed of stable performance, excellent quality and reasonable price. It is applicable to use in constructing of Optical Fiber Ethernet network.
Key Features
Specification
| Standard: | IEEE802.3,IEEE802.3u ,IEEE802.3x |
| Protocol: | CSMA/CD |
| Port: | 8 MDI/MDIX RJ45 prots and 1 fiber port |
| Input Voltage: | AC100V-AC240V/50-60Hz |
| Operational Temperature: | 0 ℃ ~ 50 ℃ |
| Storage Temperature: | -10 ℃ ~ 60 ℃ |
| Humidity: | 5%~90% non-condensing |
| Dimensions: | 180mm * 128mm * 28mm |
Ordering information
| P/N | Description | - | X | X | X | X |
| FR-SW1F8T-XXXX | 8-Port 10/100Base-Tx and 1-Port 100Base-Fx Fiber Switch |
S: Duplex Single-mode M: Duplex Multi-mode B: Simplex Single-mode |
3: TX 1310nm 4: TX 1490nm 5: TX 1550nm 8: TX 850nm |
S: SC F: FC T: ST L: LC |
05: 550M 2: 2KM 20: 20KM 40: 40KM |
