Product Details:
Payment & Shipping Terms:
|
| Wavelength: | 850nm/1310nm/1550nm | MAC: | 2K |
|---|---|---|---|
| Operating Temperature:: | 0 ℃ ~ 45 ℃ | Input Voltage Range:: | 9-15V/DC |
| Memory:: | 16MB Or Above | CPU: | 150Mhz Or Above |
| Highlight: | fiber optic network switch,power over ethernet switch |
||

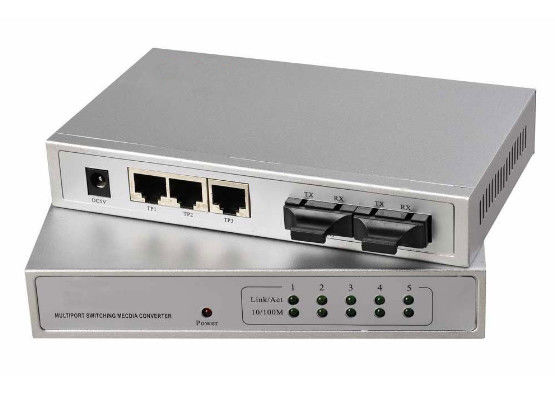

This Fast Ethernet Optical Fiber Switch has one 100M Fx port and four 10/100M UTP ports. Customer can choose different Fx specification according as his demand, such as Multimode or Single-mode, Single fiber or Dual fiber and Single-mode 20-100km etc. The product is possessed of stable performance, excellent quality and reasonable price. It is applicable to use in constructing of Optical Fiber Ethernet network.
Key Features
Specification:
| Standards and Protocols Supported | IEEE802.3 , IEEE802.3u , IEEE802.3x IEEE802.1Q |
| Protocol | CSMA/CD |
| Port | 3 MDI/MDIX RJ45 prots and 2 fiber port |
| Input Voltage Range | 9-15V/DC |
| Operating Temperature | 0 ℃ ~ 45 ℃ |
| Storage Temperature | -10 ℃ ~ 60 ℃ |
| Storage Humidity | 5%~90% RH no condensing |
| Dimensions: | 158mm*95mm*27mm |
Ordering information
| P/N | Description | - | X | X | X | X |
| FR-SW2F3T-XXXX |
3-Port 10/100Base-Tx and 2-Port 100Base-Fx Fiber Switch |
S: Duplex Single-mode M: Duplex Multi-mode B: Simplex Single-mode |
3: TX 1310nm 4: TX 1490nm 5: TX 1550nm 8: TX 850nm |
S: SC F: FC T: ST L: LC |
05: 550M 2: 2KM 20: 20KM 40: 40KM |
