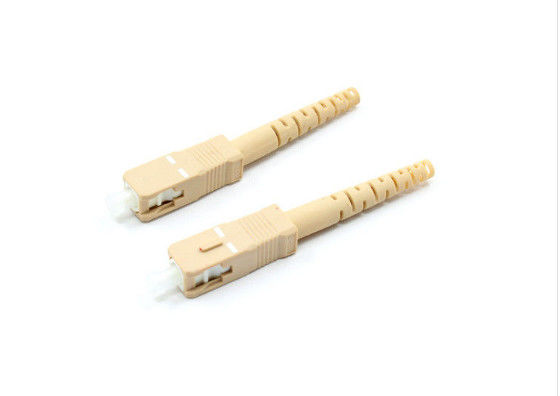

SC UPC Multimode Fiber Connectors Single Core For Fiber Optic Patch Cord

: Large Image : SC UPC Multimode Fiber Connectors Single Core For Fiber Optic Patch Cord

Product Details:

Place of Origin:	SHENZHEN,CHINA
Brand Name:	J&K
Certification:	IS09001-2008ROHS
Model Number:	SC/UPC MM Connector

Payment & Shipping Terms:

Minimum Order Quantity:	1000PCS
Price:	Negotiation
Packaging Details:	PE bag
Delivery Time:	3~5days
Payment Terms:	L/C, T/T

Contact Now

Detailed Product Description

Product Name:	Fiber Optic Connector	Application:	FTTH FTTB FTTX Network
Insertion Loss:	SM≤0.2 DB,MM≤0.25 DB	Return Loss:	PC≥50dB,UPC≥55dB,APC≥65dB
Operating Temperature:	-40°C ~ +80°C	Durability:	≤ 0.2db Typical Change
Highlight:	quick connect fiber optic connectors , terminate fiber lc connector

SC / UPC multimode Fiber Optic Connector for fiber optic Patch Cord

Features

FC, SC, LC, MU, ST, MT-RJ, etc connector
Customized specifications welcomed.
Good exchange ability and good durability;
Available in fiber bunch, ribbon fan-out, pigtail available;
Meets ISO9001, ROHS and Bell core GR 326-core standards;

Applications

Telecommunication
Computer networks
CATV networks
Premise installations

Specifications

Insertion loss	SM	≤0.20 dB
Insertion loss	MM	≤0.25dB
Return loss	P C	≥50 dB
	UPC	≥55 dB
	APC	≥65 dB
Durability	<0.20 dB typical change, 1000 mating
Ferrule hole sizes	SM: 125.0+1/-0um	concentricity:≤1.0um
	125.5+1/-0um	≤1.0um
	126.0+1/-0um	≤1.0um
	MM:125 um	concentricity:1≤3 um
	127 um	≤3 um
	128 um	≤3 um
Operating temperature	-40~80°C

Ordering Information

Step 1: Connector Type: FC,SC,LC,ST,MTRJ,MU,MPO,D4,DIN,SMA
Step 2: Connector size: 0.9mm, 2.0mm, 3.0mm
Step 3: Ferrule End-face: PC, UPC, APC
Step 4: Core Type: Single-mode (SM:9/125um), Multimode (MM:50/125um,62.5/125um)
Step 5: Boot color: Black, Blue, White, Red, Yellow, Green, Beige, Aqua
