Product Details:
Payment & Shipping Terms:
|
| Product Name: | Fiber Optical Switch | Mode: | SM Or MM |
|---|---|---|---|
| Data Rate: | 10/100/1000Mbps | Data Rate FX/TX: | 100 Base-SX/LX 10/100 Base-T |
| Flow Control: | Full Duplex ,Half Duplex | Wavelength: | 850nm/1310nm/1550nm |
| Highlight: | fiber optic network switch,gigabit ethernet switch |
||

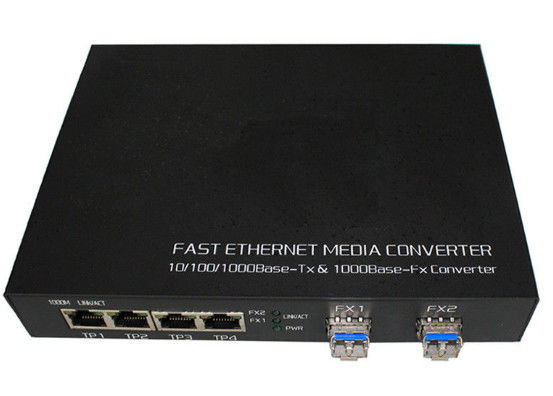

This series converters are designed to meet the massive needs for Gigabit network deployment and able to extend a copper based Gigabit network via fiber cable to a maximum distance up to 80KM. This series converters are fully compliant with IEEE802.3z & 802.3ab standards. It can be installed into a Standard Converter Chassis. The installation & operation procedures are simple & straightforward. Operation status can be locally monitored through a set of Diagnostic LED located in the front panel.
Key Features:
Specifications:
| Standard Protocol : | 10/100/1000Base-T, 1000Base-X protocol |
| Connector | Four UTP RJ-45connector, Two SFP SLOTS |
| Operation mode | full duplex mode or half duplex mode x |
| TP cable | Cat5 UTP cable |
| Transfer fiber |
multi-mode: 50/125, 62.5/125 or 100/140μm single mode:: 8.3/125, 8.7/125, 9/125 or 10/125μm |
| Power supply parameter | 0℃-60 ℃ |
| Environmental temperature: | -20 ～ + 70 ℃ |
| Humidity | 5% ～ 90% ； |
| Dimensions | 40mm x 110mm x 140mm |
Ordering information :
| P/N | Description | - | X | X | X | X |
| FR-SW2GF4GT-XXXX |
4-Port 10/100/1000Base-TX and 2-Port 1000Base- FX Fiber Switch |
S: Duplex Single-mode M: Duplex Multi-mode B: Simplex Single-mode SFP: SFP Slot |
3: TX 1310nm 4: TX 1490nm 5: TX 1550nm 8: TX 850nm |
S: SC F: FC T: ST L: LC |
05: 550M 2: 2KM 20: 20KM 40: 40KM |
