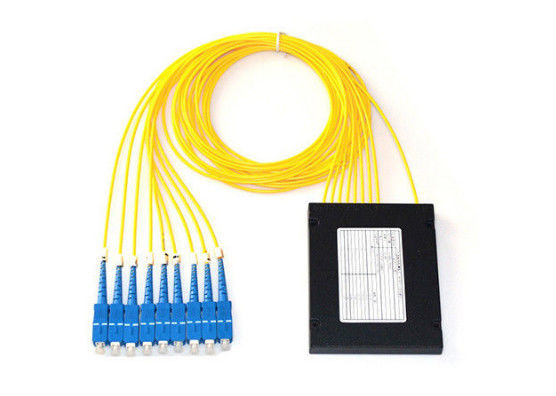

2.0mm 1 X 8 Fiber Optic PLC Splitter Wide Operating Wavelength With SC / UPC Connectors

: Large Image : 2.0mm 1 X 8 Fiber Optic PLC Splitter Wide Operating Wavelength With SC / UPC Connectors

Product Details:

Place of Origin:	SHENZHEN,CHINA
Brand Name:	J&K
Model Number:	1* 8 SC / UPC PLC Splitter

Payment & Shipping Terms:

Minimum Order Quantity:	10PCS
Price:	Negotiation
Packaging Details:	Plastic box
Delivery Time:	3~5days
Payment Terms:	L/C, T/T

Contact Now

Detailed Product Description

Product Name:	Fiber Optic PLC Splitter	Application:	FTTH FTTB FTTX PON CATV
Fiber Type:	G.657A With 0.9mm Lose Tube	Operating Temperature:	-40℃ To 85℃
Wavelength:	1260-1650nm	Item:	High Quality Plc Splitters
Highlight:	fiber optic cable splitter , active optical splitter

1X8 - PLC Splitter with ABS Module input output 2.0mm With SC / UPC Fiber Connectors

Features

High Return Loss
Uniform Power Splitting
Compact Design
Wide Operating Wavelength
Wide Operating Temperature

Applications

FTTx (FTTB, FTTH, FTTC)
Passive Optical Networks (PON)
Local Area Networks (LAN)
CATV Systems
Test Equipments

Specifications

Parameter		Value
Product Type		1×2/2x2	1×4/2x4	1×8/2x8	1×16/2x16	1×32/2x32	1×64/2x64	1×128/2x128
Wavelength(nm)		1260~1650
I.L(dB)	Typ.	3.6/4.2	7.1/7.2	10.4/10.6	13.6/13.8	17.2/17.5	20.1/20.5	25.0/25.2
	Max.	4.3/4.5	7.4/7.6	10.7/11.0	14.0/14.8	18.0/18.0	21.5/21.5	25.8/25.8
Uniformity(Max.)(dB)		0.5/0.8	0.8/1.0	1.0/1.2	1.4/1.5	1.6/1.8	2.0/2.5	2.6/3.0
PDL(Max.)(dB)		0.2/0.2	0.3/0.3	0.3/0.3	0.3/0.3	0.3/03	0.5/0.5	0.8/1.0
TDL(Max.)(dB)		0.5
R.L(dB)		≥55(APC)/≥55(UPC)
Directivity(dB)		≥55
Operating & Storage Temperature		-40~+85
Note: All the data above does not include connectors. UPC Connectors: IL add 0.2 dB, APC Connectors: IL add 0.3 dB.
