2.0mm Simplex Yellow Fiber Optic Patch Cord Single Mode G657A E2000 / APC

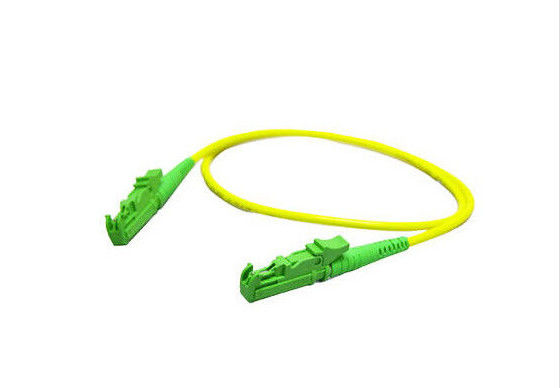

: Large Image : 2.0mm Simplex Yellow Fiber Optic Patch Cord Single Mode G657A E2000 / APC

Product Details:

Place of Origin:	SHENZHEN,CHINA
Brand Name:	J&K
Certification:	ROHS
Model Number:	E2000/APC SM SX

Payment & Shipping Terms:

Minimum Order Quantity:	20PCS
Price:	Negotiation
Packaging Details:	PE bag
Delivery Time:	3~5days
Payment Terms:	L/C, T/T

Contact Now

Detailed Product Description

Application:	FTTH FTTB FTTX Network	Length:	1m 2m 3m Or Customized
Insertion Loss:	<0.3dB	Material:	PVC/LSZH
Product Name:	Fiber Optic Patch Cord	Polish:	PC/UPC/APC
Highlight:	single mode to multimode fiber patch cord , fiber pigtails patch cords

2.0mm Simplex Singlemode G657A E2000 / APC fiber optic patch cord

Features

Low insertion loss and back reflection loss
Ferrule end surface pre-domed
Excellent mechanical endurance
Good in repeatability
Good in exchange
Green production, CE, RoHS standard

Applications

Telecommunications
CATV, LAN, MAN, WAN, test and measurement
Military industry
Medical

Specifications

Optical Performance	Single-mode	Multi-mode
Diameter(mm)	0.9,2.0,3.0
Fiber Cable	Simplex or Duplex available
Insertion Loss(dB)	≤0.3(PC)	≤0.3(PC)
Return Loss(dB)	≥45(PC)	≥35(PC)
	≥50(UPC)
	≥(APC)
Exchangeability	≤0.2dB
Repeatability	≤0.2dB
Operating Temp.	-20to+75℃
Storage Temp.	-40to+85℃

Endface Geometry
Parameter	2.5mm ferrule		1.25mm ferrule
Parameter	UPC	APC	UPC	APC
Radius of Curvature	10-25mm	5-12mm	7-25mm	5-12mm
Apex Offset	0-50um	0-50um	0-50um	0-50um
Fiber Height	-100~50nm	-100~100nm	-100~50nm	-100~100nm
Angle	--	7.7-8.3 degree	--	7.7-8.3 degree
3D-Geometry
