Product Details:
Payment & Shipping Terms:
|

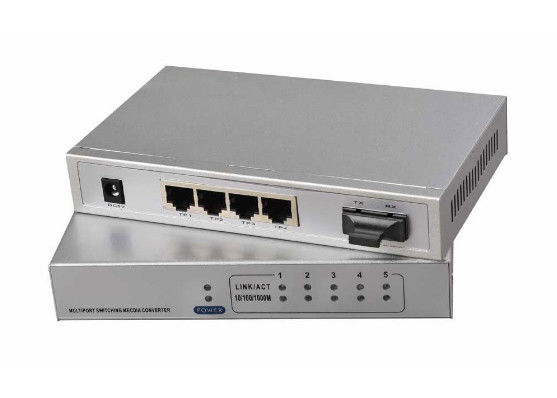

| Product Name: | Fiber Optical Switch | Mode: | SM Or MM |
|---|---|---|---|
| Data Rate: | 10/100/1000Mbps | Data Rate FX/TX: | 100 Base-SX/LX 10/100 Base-T |
| Flow Control: | Full Duplex ,Half Duplex | Wavelength: | 850nm/1310nm/1550nm |
| Highlight: | fiber optic network switch,power over ethernet switch |
||
Key Features:
Specifications:
| Operating standards : | IEEE802.3,IEEE802.3U,IEEE802.3Z , IEEE802.3X, |
| Wavelength | 850nm/1310nm/1550nm |
| Distance |
Dual Fiber MM : 550m Dual Fiber SM : 10/20/40 / 60km Single Fiber SM : 20/ 40km |
| MAC address table: | 4K |
| Frame buffer memory | 1Mbit |
| Flow control | Full Duplex: IEEE802.3x flow control |
| LED |
PWR , FX LINK/ACT,TP LINK/ACT(1port -4port) FX 1000M ,TP 1000M (1port -4port) |
| Input Voltage Range | DC 9-12V |
| Power Consumption | 3.5Watts Maximum |
| Ambient Temperature | 0 ～ + 40 ℃ |
| Storage Temperature | -20 ～ + 70 ℃； |
| Humidity | 5% ～ 90% ； |
| Dimensions | 158mm * 95mm * 27mm |
Ordering information :
| P/N | Description | - | X | X | X | X |
| FR-SW1GF4GT-XXXX | 4-Port 10/100/1000Base-Tx and 1-Port 1000Base-Fx Fiber Switch |
S: Duplex Single-mode M: Duplex Multi-mode B: Simplex Single-mode SFP: SFP Slot |
3: TX 1310nm 4: TX 1490nm 5: TX 1550nm 8: TX 850nm |
S: SC F: FC T: ST L: LC |
05: 550M 2: 2KM 20: 20KM 40: 40KM |
