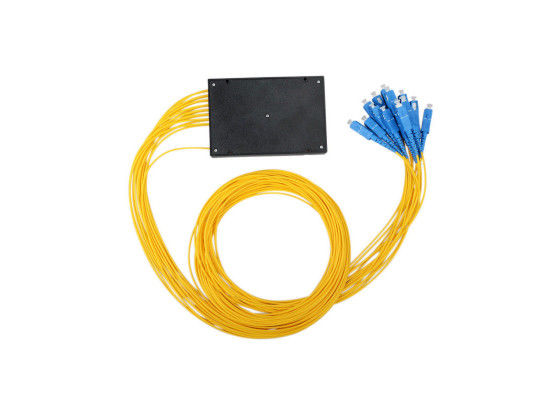

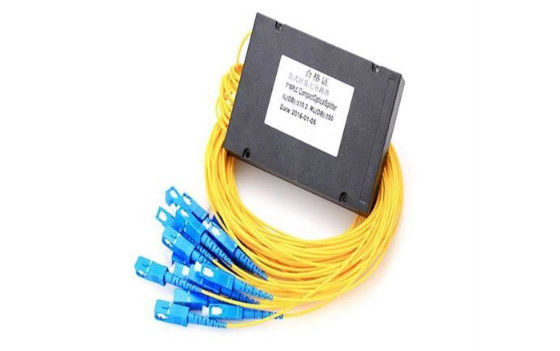

1 / 16 Way FTTH Optical Cable Splitter , Optical Cord Splitter ABS Box Package For Test Equipment

Large Image : 1 / 16 Way FTTH Optical Cable Splitter , Optical Cord Splitter ABS Box Package For Test Equipment

Product Details:

Place of Origin:	SHENZHEN,CHINA
Brand Name:	J&K
Model Number:	1/16 SC / UPC PLC Splitter

Payment & Shipping Terms:

Minimum Order Quantity:	10PCS
Price:	Negotiation
Packaging Details:	Plastic box
Delivery Time:	3~5days
Payment Terms:	L/C, T/T

Contact Now

Detailed Product Description

Product Name:	Fiber Optic PLC Splitter	Connector Type:	SC/APC
Wavelength:	1260-1650nm	Operating Temperature:	-40℃ ~ 85 ℃
Fiber Type:	G657A	Item:	High Quality Plc Splitters
Highlight:	fiber optic cable splitter , active optical splitter

Single mode ABS box package SC / UPC 1 * 16 way FTTH PLC Fiber Optic Splitter
Features

Good uniformity and low insertion loss
Low polarization dependent loss
Compact design,suitable for installation in optical equipment
High reliability and stability

Applications

Fiber to The Home (FTTH)
Fiber to The Home (FTTH)
Local Area Networks (LAN)
Test Equipment

Specifications

Operating Wavelength(nm)	1260~1650
Fiber Type	G657A1 or as customers' order
Port Configuration	1x4	1x8	1x16	1x32	1x64
Insertion Loss (dB)	7.1/7.3	10.2/10.5	13.5/13.7	16.5/16.9	20.5/21.0
Loss Uniformity (dB)	0.6	0.8	1.2	1.5	2
Polarization Dependent Loss(dB)	0.2	0.2	0.25	0.3	0.35
Wavelength Dependent Loss(dB)	0.3	0.3	0.5	0.5	0.5
Temperature Dependent Loss (-40~85 ) (dB)	0.4	0.4	0.5	0.5	0.5
Return Loss (dB)	55/50
Operating Temperature	-40~+85
Directivity (dB)	≥ 55
Storage Temperature	-40~+85
