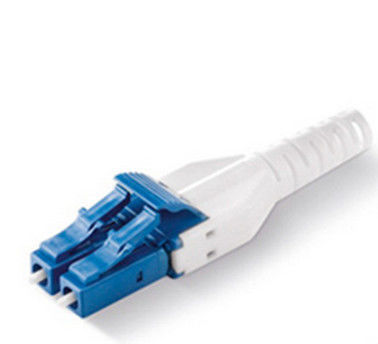

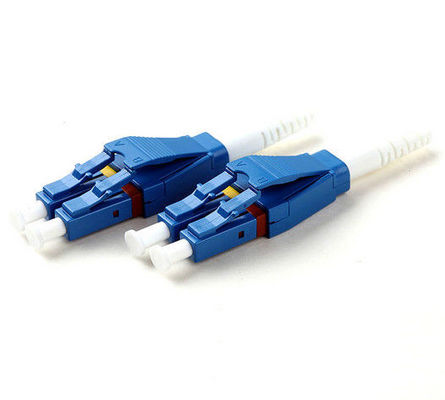

Single Mode Fiber Optic Connectors LC / UPC Duplex Uniboot For FTTX Network

Large Image : Single Mode Fiber Optic Connectors LC / UPC Duplex Uniboot For FTTX Network

Product Details:

Place of Origin:	SHENZHEN,CHINA
Brand Name:	J&K
Certification:	ISO9001:2015 , RoHS
Model Number:	LC DX Connector

Payment & Shipping Terms:

Minimum Order Quantity:	20PCS
Price:	Negotiation
Packaging Details:	PE bag/cartons
Delivery Time:	5~8 working Days
Payment Terms:	L/C, T/T

Contact Now

Detailed Product Description

Insertion Loss:	PC≤0.20dB, UPC ≤0.25dB, APC ≤0.25dB	Product Name:	Fiber Optic Connector
Application:	FTTH FTTB FTTX Network	Return Loss:	PC ≥50 DB, UPC ≥55 DB & APC ≥60 DB
Operating Temperature:	-40°C ~ +80°C	Durability:	≤ 0.2db Typical Change
Highlight:	plastic fiber optic cable connectors , quick connect fiber optic connectors

1.Features:

Have two dismount gap, easy to dismount
Streamline design, good aesthetic
Uniboot connector cable management
Switchable Connector to change polarity
MINI Boot & Flex angle boot available
Right Angle Clip well for panel management

2.Applications:

Gigabit Etherne
Video
Multimedia
Active device termination
Premise installations
Telecommunication network

3.Specifications:

Item	Single mode	Multi mode
Insertion loss	PC≤0.20dB, UPC ≤0.25dB, APC ≤0.25dB	<0.3dB
Return loss	PC ≥50 dB, UPC ≥55 dB & APC ≥60 dB	>25dB
Insert-pull test	1000(times) <0.2dB
Operating temperature	-40°C~ +80°C
Ceramic ferrule spec	125.5um concentricity deviations: <1um	127um concentricity deviations: <3um
Suitable fiber	PC/APC(9/125um)	PC(50/125um, 62.5/125um)
