| Product Name: | Fiber Optical Switch | Switching Mode: | Store And Forward |
|---|---|---|---|
| Power Supply:: | AC:220V Or DC:-48V | Operation Temperature: | -20 ℃ To 70 ℃ |
| Operation Humidity:: | 10% To 90% | Number Of Ports: | 8ports |
| Highlight: | fiber optic network switch,power over ethernet switch |
||
Wireless UTP Optica Fiber Switch IEEE802.3x full-duplex flow control

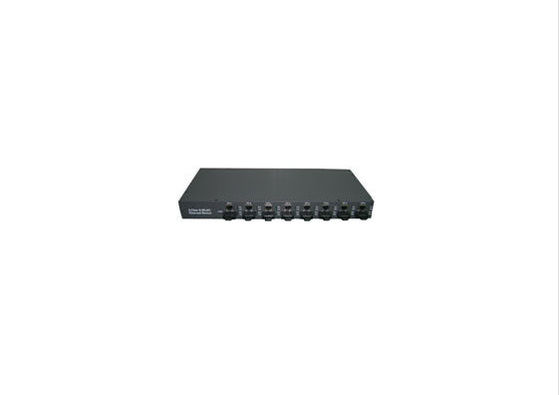

This Fast Ethernet Optical Fiber Switch has eight 100M Fx port and eight 10/100M UTP ports. Customer can choose different Fx specification according as his demand, such as Multimode or Single-mode, Single fiber or Dual fiber and Single-mode 20-100km etc. The product is possessed of stable performance, excellent quality and reasonable price. It is applicable to use in constructing of Optical Fiber Ethernet network.
Key Features :
• 8port 10/100M RJ-45.
• 8port 100Base-Fx.
• Store and forward mode.
• 10/100M auto-negotiation, maximum speed to 20/200M (full-duplex).
• Supports IEEE 802.3x full-duplex flow control and back pressure half-duplex flow control.
• Supports MAC self-learning.
• Automatic MDI/MDI-X configuration.
• Port base VLAN.
• Built-in 12Kx64 SRAM.
• Supports 2048 MAC addresses table.
• LED status of Link, activity, Full/half duplex, speed,and power on diagnostic function.
• Steel case.
Specification :
| Specification : | |||
| Standard | IEEE802.3 , IEEE802.3u , IEEE802.3x | ||
| Topology | Star | ||
| Number of Ports | 8 Port 10/100Base-Tx And 8Port 100Base-Fx | ||
| Uplink Ports | None | ||
| Transmission Rate | 10Mbps : 14880pps , 100Mbps : 148800pps | ||
| Switching mode | Store-and-Forward | ||
| Flow control mode | IEEE 802.3x full-duplex flow control and back pressure flow control | ||
| LED Indicator | LED status of Link, activity,speed, and power on diagnostic function | ||
| Cable Support |
10Base-T : 3, 4 or Cat 5 shielded / unshielded twisted pair , 100 meters max. ； 100Base-TX : Cat 5 shielded / unshielded twisted pair , 100 meters max. 100Base-Fx : 8.3μm , 8.7μm , 9μm and10μm on single mode fiber and 50 , 62.5 and 100μm on multi-mode fiber |
||
| Power supply | AC:220V or DC:-48V | ||
| Temperature Humidity | Temperature | Humidity | |
| Operation | -20 ℃ to 70 ℃ | 10% to 90% | |
| Storage | -40 ℃ to 75 ℃ | 5% to 95% RH | |
Ordering information :
| P/N | Description | - | X | X | X | X |
| FR-SW8F8T-XXXX |
8-Port 10/100Base-Tx and 8-Port 100Base-Fx Fiber Switch |
S: Duplex Single-mode M: Duplex Multi-mode B: Simplex Single-mode |
3: TX 1310nm 4: TX 1490nm 5: TX 1550nm 8: TX 850nm |
S: SC F: FC T: ST L: LC |
05: 550M 2: 2KM 20: 20KM 40: 40KM |
