Managed Gigabit Ethernet Switch , 2 - X SFP Port Fiber Optic Network Switch

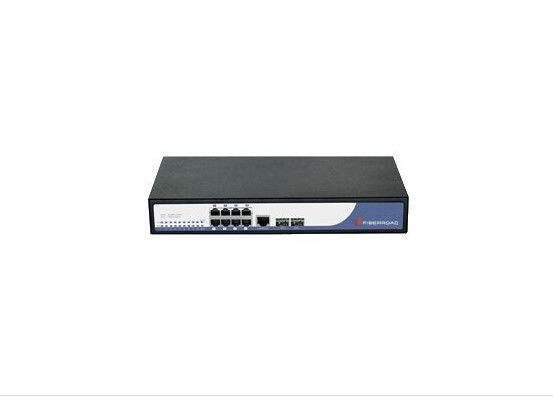

: Large Image : Managed Gigabit Ethernet Switch , 2 - X SFP Port Fiber Optic Network Switch

Product Details:

Place of Origin:	SHENZHEN,CHINA
Brand Name:	J&K
Certification:	CE,FCC,SGS,ISO9000
Model Number:	FR-SW2GF8GTM-SFP

Payment & Shipping Terms:

Minimum Order Quantity:	1PC
Price:	Negotiation
Packaging Details:	Carton Box
Delivery Time:	3~5days
Payment Terms:	L/C, T/T

Contact Now

Detailed Product Description

Product Name:	Fiber Optical Switch	Mode:	SM Or MM
Data Rate:	10/100/1000Mbps	Wavelength:	850nm/1310nm/1550nm
Flow Control:	Full Duplex ,Half Duplex	MAC Adress:	8k
Highlight:	fiber optic network switch , gigabit ethernet switch

Managed Fiber Optic Switches 8 Port 100 / 1000Base-Tx and 2-X SFP Port

The switches enterprise switches are Full Gigabit L2 switches. The switches utilizes cutting-edge hardware and fiberroad Operating System Platform (TOS) software to provide high-performance access and aggregation to an enterprise campus network. The switches integrates many advanced technologies in terms of reliability, security, and energy saving. It employs simple and convenient means of installation and maintenance to reduce customers' OAM cost and help enterprise customers build a next-generation IT network.

Key Features :

Comprehensive QoS policies and security mechanisms

The switches classifies complex traffic based on packet information such as the 5-tuple, IP preference,ToS, DSCP, IP protocol type, ICMP type, and CoS. Each port supports eight priority queues and multiple queue scheduling algorithms, such as WRR, SP, WRR+SP. Together, these features ensure high-quality voice, video, and data services.

The switches provides multiple security measures to defend against Denial of Service (DoS) attacks, as well as attacks against networks or individual users. DoS attack types include SYN Flood attacks, Land attacks,Smurf attacks, and ICMP Flood attacks. Attacks on networks refer to STP BPDU/root attacks. Attacks on users include bogus DHCP server attacks, man-in-the-middle attacks, IP/MAC spoofing attacks, and DHCP request flood attacks. DoS attacks that change the CHADDR field in DHCP packets are another type of attack aimed at users.

Powerful support for services

The switches supports IGMP v1/v2/v3 snooping, IGMP filter, IGMP fast leave, and IGMP proxy. The S3500 supports wire-speed replication of multicast packets between VLANs, multicast load balancing among member interfaces of a trunk, and controllable multicast, meeting requirements for IPTV and other multicast services.

Energy conservation, and low radiation

The switches uses an energy-saving integrated circuit design to ensure even heat dissipation. Idle ports can enter a sleep mode to further reduce power consumption. Radiation produced by the switches is within the standard range for electric appliances and causes no harm to the human body.

Easy deployment and maintenance free

Supports SNMP v1/v2c and provides flexible methods for managing devices. Users can manage the switches using the CLI and Web NMS.

Specifications:

Fixed port	8*10/100/1000 Base-T ports
Fixed port	2*1000 Base-X SFP ports
Switching Capacity	≥20Gbps
Packet Forwarding Capacity	15Mpps
Dimensions	280(L)180(W)44(H)mm
Weight	<2Kg
Power Consumption	<10W

Standards	IEEE 802.3ad, Link Aggregation
	IEEE 802.3,10BASE-T
	IEEE 802.3u,100 BASE-TX
	IEEE 802.3ab,1000 BASE-T
	IEEE 802.3z,1000 BASE-X
	IEEE 802.3x, Ethernet flow control
	IEEE 802.3az,EEE(Energy Efficient Ethernet)
	IEEE 802.1AB-2005,LLDP( Link Layer Discovery Protocol)
	IEEE 802.1d, Spanning Tree Protocol
	IEEE 802.1w, Rapid Spanning Tree Protocol
	IEEE 802.1q, VLAN
	IEEE 802.1p,QoS
MAC Address	8K MAC addresses
MAC Address	MAC address learning and aging
VLAN	4K VLANs
	Port-based VLANs
	Voice VLAN
Spanning Tree	STP(Spanning Tree Protocol)
Spanning Tree	RSTP( Rapid Spanning Tree Protocol)
Link Aggregation	Max 8 aggregation groups, each supports 8 ports
Link Aggregation	Static aggregation and dynamic aggregation
Port Mirroring	Many-to-one port mirroring
Multicast	IGMP v1/v2/v3 snooping and IGMP fast leave
QoS	Rate limiting on packets sent and received by an interface
	Eight queues on each port
	WRR, SP, WRR+SP queue scheduling algorithms
	Re-marking of the 802.1p priority and DSCP priority
	Rate limiting in each queue and traffic shaping on ports
Security	DoS attack defense, ARP attack defense, and ICMP attack defense
	Port isolation
	User privilege management and password protection
Management and maintenance	SNMP v1/v2c
	Remote configuration and maintenance using Telnet
	Web NMS
	System logs and alarms of different levels
