Product Details:
Payment & Shipping Terms:
|
| Application: | FTTH FTTB FTTX Network | Cable Length: | 1m Or Customized |
|---|---|---|---|
| Cable Jacket: | PVC/LSZH/Plenum | Name: | Fiber Optic MPO Patchcord |
| Insertion Loss: | ≤0.1dB | Operating Temperature: | -20℃~+60℃ |
| Highlight: | fiber optic cable patch cord,duplex fiber optic patch cord |
||

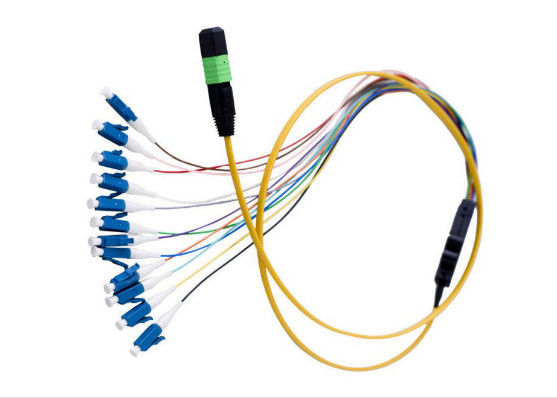

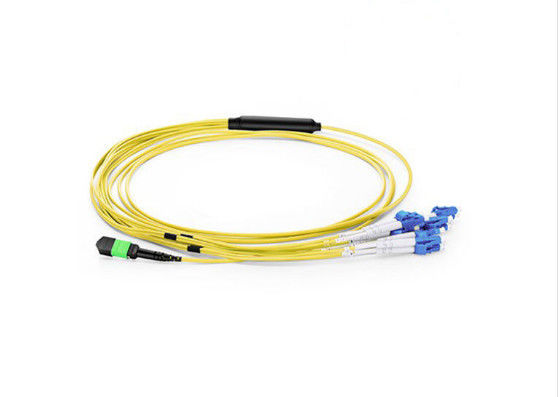

APC 12 core MTP / MPO – LC Fiber Optic Patch Cord for Premise Installations
Features
Applications
Specifications
Fiber Connector
| Connector A | |
| Connector Type | 12 or 24 -Fiber MPO /MTP |
| Ferrule of end-face | UPC, APC |
| Housing Color | MM (Beige/Aqua), SM (Yellow/Green) |
| Insertion Loss, Typical | ≤ 0.10 dB |
| Insertion loss, max. | ≤ 0.35 dB |
| Durability(500 Matings) | < 0.2dB |
| Connector B | |
| Connector Type | LC/SC |
| Ferrule of end-face | UPC, APC |
| Housing Color | Blue, Beige, Aqua |
| Insertion Loss, Typical | ≤ 0.10 dB |
| Insertion loss, max. | ≤ 0.35 dB |
| Durability(1000 Matings) | < 0.2dB |
Fiber Cable
| Fiber Type | OS2, OM1, OM2, OM3, OM4 |
| Fiber Count | 12, 24 cores |
| Outer diameter | 12cores: 4.5±0.2mm ; 24cores:5.4±0.2mm |
| Outer jacket Colour | OS2(Yellow),OM2(Orange),OM3(Aqua),OM4(Violet) |
| Outer jacket material | LSZH,OFNP,OFNR |
| Tensile strength | 500N |
| Operating Temperature | -20 ~ +60°C |
| Storage Temperature | -40 ~ +70°C |
