Male / UPC MPO Patch Cord Compact SMF 2 - 24 Cores IS0 / ROHS Listed Durable

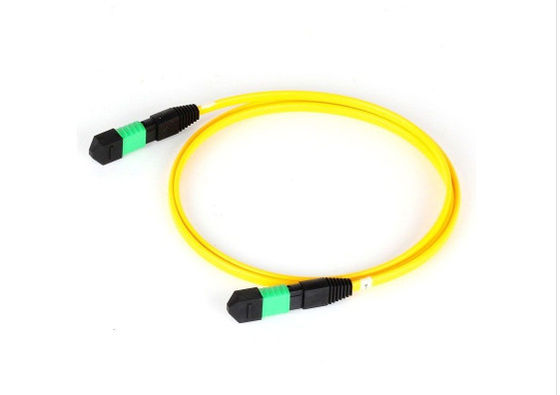

Large Image : Male / UPC MPO Patch Cord Compact SMF 2 - 24 Cores IS0 / ROHS Listed Durable

Product Details:

Place of Origin:	SHENZHEN,CHINA
Brand Name:	J&K
Certification:	IS09001-2008.ROHS
Model Number:	Male/UPC - Male/UPC SMF MPO patch cord

Payment & Shipping Terms:

Minimum Order Quantity:	50PCS
Price:	Negotiation
Packaging Details:	PE bag
Delivery Time:	3~5days
Payment Terms:	L/C, T/T

Contact Now

Detailed Product Description

Application:	FTTH FTTB FTTX Network	Jacket Material:	LSZH Or PVC
Operating Temperature:	-40~85 ℃	Name:	Fiber Optic MPO Patchcord
Return Loss:	SM≥55dB,MM≥30dB	Durability:	<0.3dB Typical Change, 200 Matings
Highlight:	fiber optic cable patch cord , duplex fiber optic patch cord

Male / UPC - Male / UPC SMF MPO patch cord MPO Cable MPO jumper MPO Datacenter Cabling

Features

IEC 61754-7 Compliant
Compact design, up to 24 fiber ribbon
Polishing does not require diamond film
Precision molded MT ferrule
Telcordia GR-1435-CORE compliant
Low insertion loss and back reflection loss
High precision guide pins for exact alignment

Applications

For installation in horizontal patch extension from consolidation point to the workstation outlets.
High Density Fiber Management.
Telecommunications networks and Broadband / CATV networks.
LWAN Premises

Specifications

	Single mode	Multimode
Insertion Loss	Low Los ≤ 0.35dB	Low Los ≤ 0.35dB
Insertion Loss	Standard Loss ≤ 0.7dB	Standard Loss ≤ 0.5dB
Return Loss	≥ 55dB	≥ 30dB
Durability	<0.3dB typical change, 200 matings	-
Operating Temperature	-40 to +85 ºC	-40 to +85 ºC
