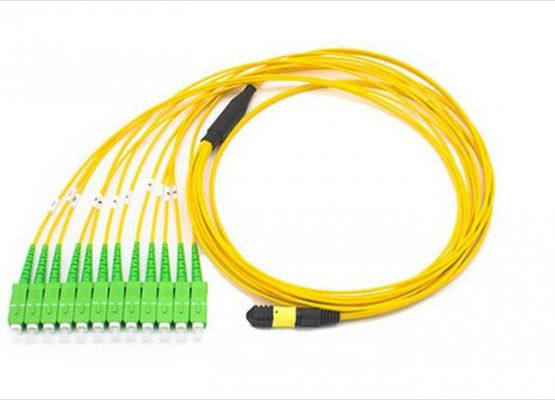

12 Fibers MPO Sc Apc Patch Cord , Breakout Yellow Fiber Optic Cord For Storage Area Network

: Large Image : 12 Fibers MPO Sc Apc Patch Cord , Breakout Yellow Fiber Optic Cord For Storage Area Network

Product Details:

Place of Origin:	SHENZHEN,CHINA
Brand Name:	J&K
Model Number:	MPO / APC to SC / APC

Payment & Shipping Terms:

Minimum Order Quantity:	50PCS
Price:	Negotiation
Packaging Details:	PE bag
Delivery Time:	3~5days
Payment Terms:	L/C, T/T

Contact Now

Detailed Product Description

Application:	FTTH FTTB FTTX Network	Operating Temperature:	-20℃~+70℃
Name:	Fiber Optic MPO Patchcord	Durability (500 Matings):	≤0.2dB
Storage Temperature:	-40℃~+85℃	Cable Diameter:	3.0mm
Highlight:	fiber optic cable patch cord , duplex fiber optic patch cord

MPO / APC to SC / APC Single Mode 12 Fibers Mpo Breakout Cable For Storage Area Network

Features

High fiber density
Insert/pull latching connector
Lower installation cost
High compatibility, flexibility& system performance

Applications

Data Center
QSFP Devices
LAN/SAN switch Equipment Distribution Area(EDA)
High Density optical laser

Specifications

Model		Singlemode	Multimode
Polish		PC, APC	PC
Insertion loss	Standard	≤0.7dB	≤0.6dB
	Elite low loss	≤0.35dB	≤0.35dB
Return loss		PC≥50dB; APC≥60dB	≥30dB
Test wavelength		1310/1550nm	850/1310nm
Durability (500 Matings)		≤0.2dB
Operating temperature		-20℃~+70℃
Storage temperature		-40℃~+85℃
Fire resistant		IEC 60794-2-30
Fiber type		OS2, OM1, OM2, OM3, OM4
Cord type		8, 12, 24, 48, 72, 96, 144 cores
Cable diameter		3.0mm (8 or 12 or 24 core)
Cable jacket		LSZH, OFNR, OFNP
Length(M)		0.3m, 1m, 2m, 5m, 10m, 25m, 50m, 100m
