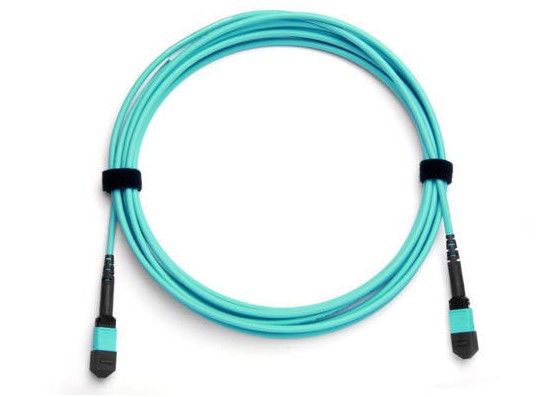

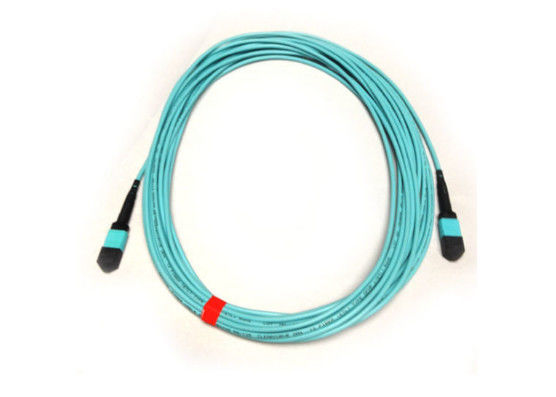

OM3 50 / 125 Multimode Fiber Patch Cord , Optical Patch Cord Trunk Cable For FTTX Network

Large Image : OM3 50 / 125 Multimode Fiber Patch Cord , Optical Patch Cord Trunk Cable For FTTX Network

Product Details:

Place of Origin:	SHENZHEN,CHINA
Brand Name:	J&K
Model Number:	MTP Female to MTP Female 12 Fibers OM3

Payment & Shipping Terms:

Minimum Order Quantity:	50PCS
Price:	Negotiation
Packaging Details:	PE bag
Delivery Time:	3~5days
Payment Terms:	L/C, T/T

Contact Now

Detailed Product Description

Application:	FTTH FTTB FTTX Network	Operating Temperature:	-25℃~+70℃
Name:	Fiber Optic MPO Patchcord	Repeatability (dB):	≤0.1
Cable Type:	LSZH,PVC	Exchangeability (dB):	≤0.3
Highlight:	fiber optic cable patch cord , mpo mtp patch cord

APC 12 core MTP / MPO – LC Fiber Optic Patch Cord for Premise Installations

Features

Complied with JIS G5982 & IEC61754
Multi-fiber termination of 4f, 8f, 12f & 24f fibers
Precision Multi fiber MT Femule

Applications

High-density fiber patching for fast connections.
CCTV System
Fiber Sensor
Railway signal Control Application

Specifications

MPO/MTP Connector		Standard Pro		Standard Pro
MPO/MTP Connector		Standard SM MT Ferrule	Low Loss (Pro) SM MT Ferrule	Standard SM MT Ferrule	Low Loss (Pro) SM MT Ferrule
Insertion Loss	Typical (dB)	0.30	0.20	0.25	0.20
	Maximum (dB)	0.75	0.35	0.60	0.35
Return Loss (dB)		≥60 for APC		≥20 for PC
		≥35 for PC		…
Male/Female		Male: With Pins, Female: Without Pins
Exchangeability (dB)		≤0.3(Connect Randomly)
Tensile Strength (dB)		≤0.3(Max 66N)
Vibration (dB)		≤0.3(10-55Hz)
Temp Range (dB)		≤0.3(-40~75℃,42Cycles)
