SM 24 Core Mpo Mtp Patch Cord , Fan Out Duplex Patch Cord For CATV / Computer Networks

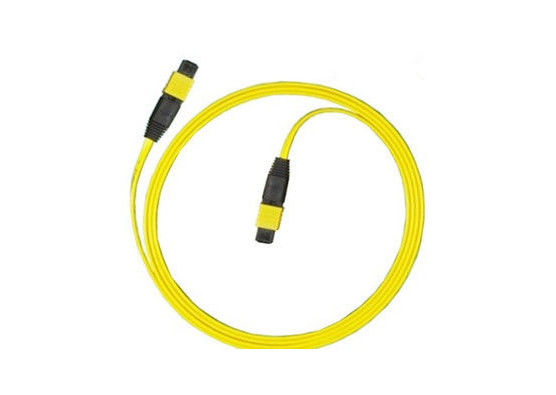

: Large Image : SM 24 Core Mpo Mtp Patch Cord , Fan Out Duplex Patch Cord For CATV / Computer Networks

Product Details:

Place of Origin:	SHENZHEN,CHINA
Brand Name:	J&K
Certification:	IS09001-2008.ROHS
Model Number:	MPO Fiber Patch Cord

Payment & Shipping Terms:

Minimum Order Quantity:	50PCS
Price:	Negotiation
Packaging Details:	PE bag
Delivery Time:	3~5days
Payment Terms:	L/C, T/T

Contact Now

Detailed Product Description

Application:	FTTH FTTB FTTX Network	Return Loss:	>60dB SM; >35dB MM
Insertion Loss:	≤0.2dB	Name:	Fiber Optic MPO Patchcord
Jacket Material:	LSZH Or PVC	Operating Temperature:	-40~75 ℃
Highlight:	fiber optic cable patch cord , mpo mtp patch cord

24Cores SM MTP MPO Optical Patch Cord MMF MPO Patch Cord

Description

Connectorized cable assemblies are cord-type fiber optical cables terminated with connectors at both end. The type of cable fiber and connector and the length of the patch cords can be freely specified by the customer as shown below. Pigtails are used for terminating fiber optical cables by splicing them the fibers of the cable and connecting the other end, which supplied with a connector to a patch panel or directly to equipment.

Features

Interferential parameters
Hybrid patch-cords are available upon request
Fan-out available
Pigtail available
Compliant with Telcordia GR-326-CORE
Jacket material: PVC, LSZH, OFNR, OFNP
Jacket diameter: 0.9mm, 2.00mm or 3.0mm

Applications

Connection of optical transmission equipment
ODF of optical transmission system
CATV
High quality graphic transmission network
High speed data transmission network
Computer networks
Telecommunication networks

Specifications

Specifications	MTP® and MPO are available. PC and APC polish meet standard requirement. Available for 8 and 12 fibers (Further assemblies, 24 fibers available on request). Support Method A, B, C and option for male and female for MTP®/MPO. Further assemblies, fanout length and cable length available on request.
Fiber Compatibility	OM2, OM3, OM4, OS1/OS2
Applications	Reliable high-density interconnection for : Data communications networks, including high-bandwidth equipment, interconnections for parallel optical transmitters and receivers, telecommunications networks and broadband/CATV networks.
