Product Details:
Payment & Shipping Terms:
|
| Application: | FTTH FTTB FTTX Network | Jacket Material: | LSZH Or PVC |
|---|---|---|---|
| Name: | Fiber Optic MPO Patchcord | Operating Temperature: | -20~60 ℃ |
| Fiber Count: | 12core, 24core | Storage Temperature: | -40~70 ℃ |
| Highlight: | fiber optic cable patch cord,mpo mtp patch cord |
||

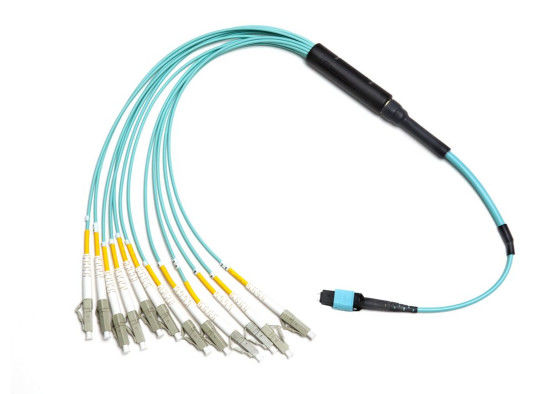

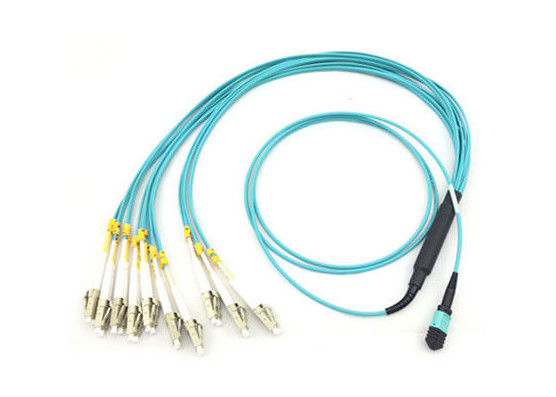

LSZH 12 / 24 cores OM3 Fibers MPO-LC mm Fiber Optic Patchcord
Features
Applications
Specifications
| Item | Connector | SM | MM |
| Insertion Loss | MPO | Single max :0.35db (L) Single Max :0.60db (G) |
Single max: 0.35dB(L) Single max :0.75db (G) |
| LC | MAX :0.10dB(L) MAX :0.15 db (G) |
Max :0.30db | |
| Return Loss | MPO | >20DB | >60DB (8 degree Angle Polish ) |
| LC | >30db | UPC:>50 dB APC: >60dB | |
| Mechanical | MPO | <0.2DB, 200 times insertion | / |
| LC | <0.2db, 500times insertion | / | |
| Operating Temperature | -20~ +60 'C | ||
| Storage Temperature | -40~ + 70'C | ||
| Install Temperature | -5~ + 50'C | ||
Order Information
| CODE | CONNECTOR | CABLE SIZE | FIBER TYPE | CABLE TYPE | FIGURE |
| H02 | 1.SM Simplex 2.MM Simplex 3.APC Simplex 4.SM Duplex 5.MM Duplex 6.APC Duplex |
1.0.9 2.2.0 3.3.0 |
1.9/125 2.OM3 3.50/125 4.62.5/125 |
1.Yellow PVC 2.Orange PVC 3.White PVC 4.Yellow LSZH 5.Orange LSZH 6.White LSZH |
1.Blue 2.Beige 3.Green 4.Black 5.Blue and Yellow 6.Red and Black |
