Pull Push MPO Patch Cord For Trunk Cable Single Mode 0.35dB Insertion Loss

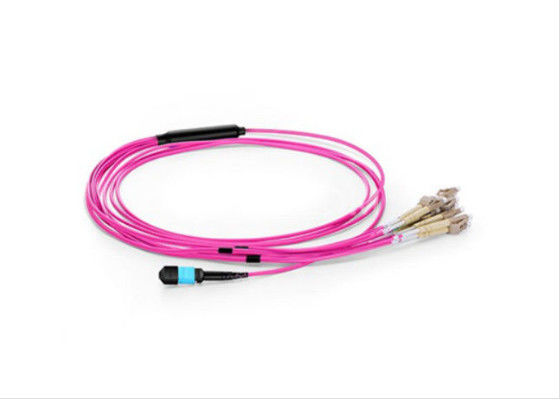

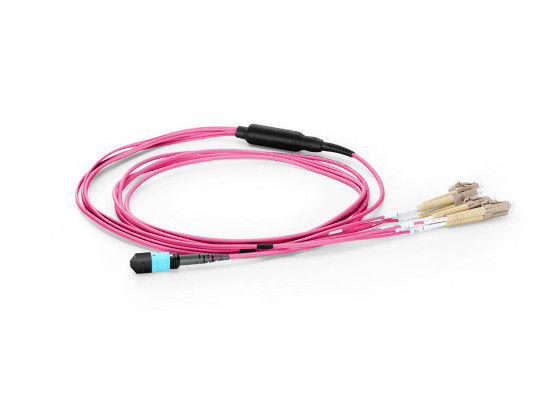

Large Image : Pull Push MPO Patch Cord For Trunk Cable Single Mode 0.35dB Insertion Loss

Product Details:

Place of Origin:	SHENZHEN,CHINA
Brand Name:	J&K
Certification:	IS09001-2008.ROHS
Model Number:	MPO patch cord with 4 / 8 / 12 / 24 core

Payment & Shipping Terms:

Minimum Order Quantity:	50PCS
Price:	Negotiation
Packaging Details:	PE bag
Delivery Time:	3~5days
Payment Terms:	L/C, T/T

Contact Now

Detailed Product Description

Name:	Fiber Optic MPO Patchcord	Application:	FTTH FTTB FTTX Network
Return Loss:	45dB	Insertion Loss:	≤0.35 DB
Operating Temperature:	-40~80 ℃	Jacket Material:	LSZH
Highlight:	mpo mtp patch cord , duplex fiber optic patch cord

fiber optic cable, MPO patch cord with 4 / 8 / 12 / 24 core

Features

4,8,12 and 24 fiber connector terminations and assemblies
Designed for low loss and standard loss SM and MM applications
Economical solution for mass-termination of fiber
Suitable for MPO/MTP application
Ruggedized round cable, oval cable and bare ribbon options available
Color coded housings available to differentiate fiber type, polish type and/or connector grade

Applications

Data room system
Office system
The monitoring system
Industrial health system
The education system

Specifications

Type/Performance	Singlemode(APC polish)		Multimode(PC / Flat Polish)
	Standard	Low Loss	Standard	Low Loss
Maximum Insertion Loss	≤ 0.75dB	≤ 0.35dB	≤ 0.60dB	≤ 0.35dB
Return Loss	≥ 50dB		N/A
Operating Temperature	-40°C to 80°C		40°C to 80°C
Test Wavelength	1310nm		850nm
