Multimode 12 Fibers MPO Patch Cord For FTTB Network 850 Nm - 3.5dB / Km Attenuation

: Large Image : Multimode 12 Fibers MPO Patch Cord For FTTB Network 850 Nm - 3.5dB / Km Attenuation

Product Details:

Place of Origin:	SHENZHEN,CHINA
Brand Name:	J&K
Certification:	CE, RoSH, SGS
Model Number:	12 fibers MPO Fiber Optic Patch Cord

Payment & Shipping Terms:

Minimum Order Quantity:	50PCS
Price:	Negotiation
Packaging Details:	PE bag
Delivery Time:	3~5days
Payment Terms:	L/C, T/T

Contact Now

Detailed Product Description

Application:	FTTH FTTB FTTX Network	Name:	Fiber Optic MPO Patchcord
Return Loss:	≥20dB	Insertion Loss:	≤0.35 DB
Operating Temperature:	-20℃~+70℃	Fiber Type:	OM3
Highlight:	fiber optic cable patch cord , mpo mtp patch cord

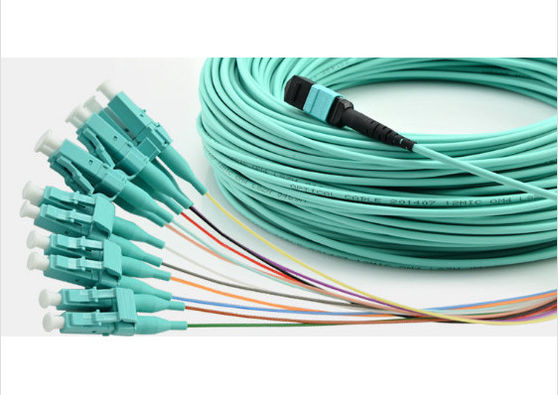

MTP MPO to LC Fan Out Multimode 12 fibers MPO Fiber Optic Patch Cord

Features

0.9mm, 2.0mm, and 3.0mm fiber optic cable are optional
Different fiber sequences and different key configurations are optional.
Available in SM (9/125), MM (50 or 62.5/125), OM3 and OM4 fiber types.
Available in 8/12/24 fibers.
Corning glass fiber is available
Ribbon ,Ruggedized or fan-out cord is available

Applications

Emerging 40 and 100Gbps protocols
Premise installations
Gigabit Ethernet
Parallel Optics
Video and military active device termination

Specifications

connector dimensions-7.75mm height x 61 mm depth
Number of fibers - 12
jacket material - pvc (OFENR riser-rated)
Jacket OD - 3.0mm
Installation Tensile Load -100N (445 ibs)
Long-term Tensile load -50N(222lbs)
Installation Minimum bend Radius -4.5cm (1.8 in)
Long-term Minimum bend Radius -3.0cm (1.2 in)
Attenuation at 850 nm -3.5dB/km
Attenuation at 1300 nm -1.0dB/km
Maximum connector Loss -0.50 db
Typical Return LOss -22 dB
Operationg Temperature --20℃ to +70℃
