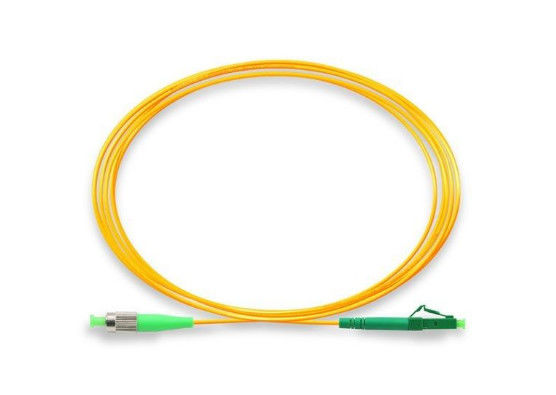

Jumper Fiber Optic Patch Cord Single Mode Simplex 3m Size FC / APC - LC / APC

: Large Image : Jumper Fiber Optic Patch Cord Single Mode Simplex 3m Size FC / APC - LC / APC

Product Details:

Place of Origin:	SHENZHEN,CHINA
Brand Name:	J&K
Certification:	ROHS
Model Number:	FC / APC - LC / APC SM SX

Payment & Shipping Terms:

Minimum Order Quantity:	20PCS
Price:	Negotiation
Packaging Details:	PE bag
Delivery Time:	3~5days
Payment Terms:	L/C, T/T

Contact Now

Detailed Product Description

Product Name:	Fiber Optic Patch Cord	Repeatability:	≤ 0.1 DB
Length:	Any Length Is Customizable	Material:	PVC/LSZH
Insertion Loss:	≤0.3dB,≤0.2dB	Connector Type:	SC/FC/LC/ST/MU/DIN/D4/MTRJ/MPO
Highlight:	duplex fiber optic patch cord , fiber pigtails patch cords

optical fiber jumper Singlemode simplex 3m FC / APC - LC / APC for home network

Features

Low insertion loss value. High return loss value .
Stable capability , high reliablity and precise connector.
Excellent mechanical capability .

Applications

National defence
FO sensor
Light communication system
Common antenna TV system

Specifications

Mode	SM		MM
Polish	UPC	APC	PC
Insertion Loss	≤0.2dB	≤0.3dB	≤0.2dB
Return Loss	≥55dB	≥65dB	≥35dB
Interchangeability	≤0.2dB
Salt Spray	≤0.1dB
Repeatability	≤0.1dB (1000 times)
Vibration	≤0.2dB (550Hz 1.5mm)
Temperature	≤0.2dB (-40+85 sustain 100 hours)
Humidity	≤0.2dB (+25+65 93 R.H.100 hours)
Apex Offset	0μm ~ 50μm
Radius of Curvature	7mm ~ 25mm
