Corning G657 Fiber Optic Patch Cord Cable Customized Length Low Insertion Loss

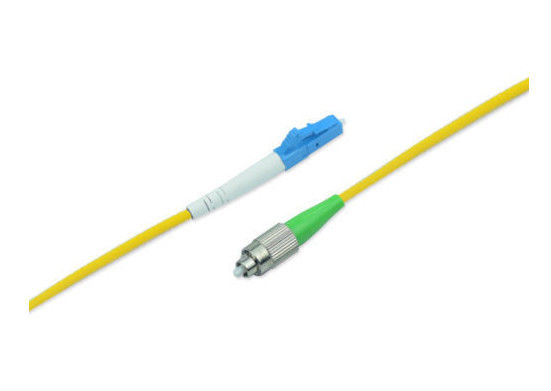

Large Image : Corning G657 Fiber Optic Patch Cord Cable Customized Length Low Insertion Loss

Product Details:

Place of Origin:	SHENZHEN,CHINA
Brand Name:	J&K
Certification:	ROHS
Model Number:	FC / APC - LC / UPC SM SX

Payment & Shipping Terms:

Minimum Order Quantity:	20PCS
Price:	Negotiation
Packaging Details:	PE bag
Delivery Time:	3~5days
Payment Terms:	L/C, T/T

Contact Now

Detailed Product Description

Length:	1m 2m 3m Or Customized	Insertion Loss:	<0.2dB
Product Name:	Fiber Optic Patch Cord	Operating Temperature (° C):	-10~ + 70℃
Application:	FTTH FTTB FTTX Network	Fiber Type:	G652D
Highlight:	single mode to multimode fiber patch cord , fiber pigtails patch cords

FC / APC - LC / UPC optical patch cord simplex singlemode, corning G657 fiber optic cable

Features

Connector Options: FC/SC/LC/ST/MU/E2000/MT-RJ/MPO/MTP
Polishing Options: PC/UPC/APC
Feature Connector with Ceramic Ferrules
Factory-terminated and Tested

Applications

Access Network
Telecom/CATV Systems
Light communication system
Common antenna TV system

Specifications

Parameters	Standard Fiber Cable Assemblies
Fiber Type	SM(G.652/G.657A)	MM(OM1/OM2/OM3)
Jacket Materials	LSZH/OFNR/PVC
Connector Type	SC/LC/ST/LC/MU/MTRJ/MPO/E2000
Ferrule Materials	Ceramic
Testing Wavelengths	1310±30/1550±30nm	850±30/1300±30nm
Insertion Losss(dB) TIA/EIA-455-107	≤ 0.2dB (PC/UPC/APC)	≤ 0.3dB (PC/UPC)
Return Loss(dB) TIA/EIA-455-107	≥45dB(PC/UPC) ≥55dB(APC)	≥35dB(PC/UPC)
Exchangeability	≤ 0.2dB
Cable Assemblies	Pigtail/Simplex/Duplex/Fan-out Patchcord
Operating Temperature (° C)	-10~ + 70
Storage Temperature (° C)	-40 ~ +85
Package	1unit/bag
