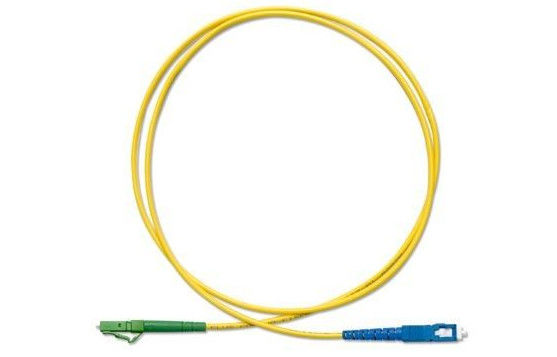

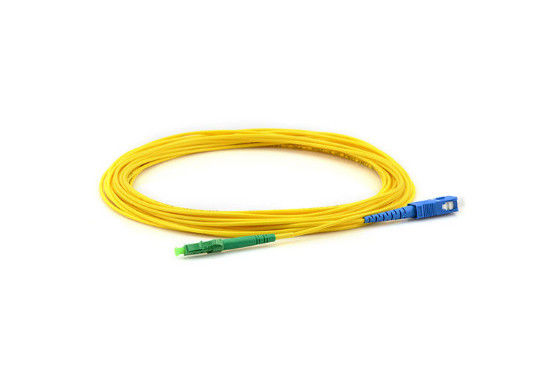

1310nm / 1550nm Single Mode To Multimode Fiber Patch Cord , LC / APC - SC / APC Corning Fiber Optic Cable

Large Image : 1310nm / 1550nm Single Mode To Multimode Fiber Patch Cord , LC / APC - SC / APC Corning Fiber Optic Cable

Product Details:

Place of Origin:	SHENZHEN,CHINA
Brand Name:	J&K
Certification:	ROHS
Model Number:	LC / APC - SC / UPC

Payment & Shipping Terms:

Minimum Order Quantity:	20PCS
Price:	Negotiation
Packaging Details:	PE Bag
Delivery Time:	3~5days
Payment Terms:	L/C, T/T

Contact Now

Detailed Product Description

Application:	FTTH FTTB FTTX Network	Length:	1m 2m 3m Or Customized
Product Name:	Fiber Optic Patch Cord	Operation Temperature:	-40℃~+80℃
Fiber Type:	G652D	Return Loss:	>35dB,>60dB
Highlight:	duplex fiber optic patch cord , fiber pigtails patch cords

1310nm 1550nm Single Mode Simplex LC / APC - SC / APC Fiber Optic Patch Cord

Features

Low insertion loss, high return loss
High dense connection, easy for operation
High credibility and stability
Good in repeatability and exchangeability

Applications

Testing equipment
FTTX+LAN
Optical fiber CATV
Optical communication system
Telecommunication

Specifications

Parameter	Values
Item	SM	MM
Insertion loss	<0.3dB <0.7 dB	<0.5dB <0.7 dB
Return loss	>60dB	>35dB
Fiber diameter	9/125um	50/125um,62.5/125um,OM3
Insert- pull test	500times<0.5 dB
Operation temperature	-40℃~+80℃
