3m PVC Duplex Patch Cord , Fiber Patch Cord Sc To Lc - 40 - 85 °C Operating Temp Range

Large Image : 3m PVC Duplex Patch Cord , Fiber Patch Cord Sc To Lc - 40 - 85 °C Operating Temp Range

Product Details:

Place of Origin:	SHENZHEN,CHINA
Brand Name:	J&K
Certification:	ROHS
Model Number:	FC / APC - SC / UPC SM SX

Payment & Shipping Terms:

Minimum Order Quantity:	20PCS
Price:	Negotiation
Packaging Details:	PE bag
Delivery Time:	3~5days
Payment Terms:	L/C, T/T

Contact Now

Detailed Product Description

Application:	FTTH FTTB FTTX Network	Length:	1m 2m 3m Or Customized
Material:	PVC	Product Name:	Fiber Optic Patch Cord
Polish:	PC/UPC/APC	Operating Temp Range::	-40~85°c
Highlight:	single mode to multimode fiber patch cord , fiber pigtails patch cords

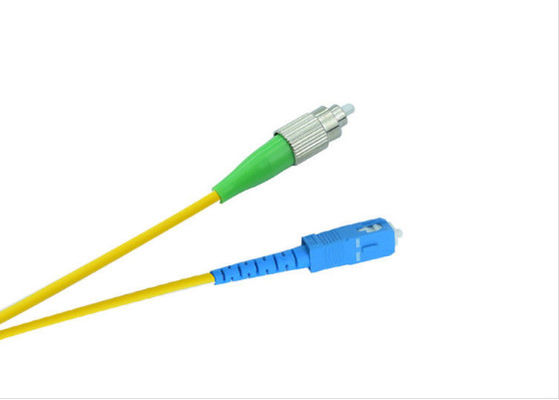

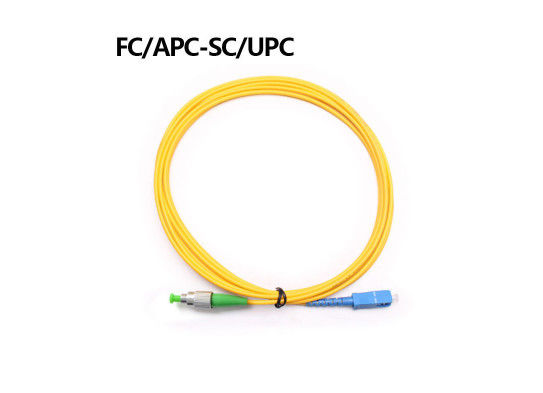

3m PVC Single Mode Simplex SC / UPC to FC / APC Fiber Optic Patch Cord Cable

Features

Push-pull SC connector on one end and screw-on FC connector on the other end for easy installation.
APC polish type to maximize signal transmission efficiency.
Available in custom lengths and colors-call for more info.

Application

Optical fiber CATV
Optical communication system
Telecommunication

Specification

Parameter	Unit	Value
Connector	/	FC ST SC LC
Ferrule	/	PC		UPC		APC(Step)		APC(Conical)
Fiber Type	/	SM	MM	SM	MM	SM	MM	SM	MM
Insertion Loss	dB	<0.25	<0.20	<0.25	<0.20	<0.30	/	<0.30	/
Repeatability	Time	>1000
Interchangeability	dB	<0.10
Return Loss	dB	>45	>36	>50	>36	>60	/	>60	/
