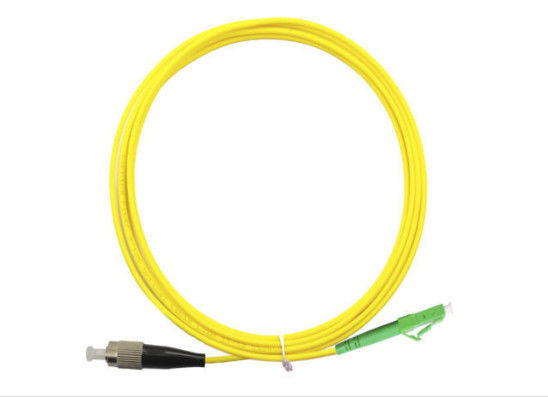

G652D LC / APC - FC / UPC Lc Lc Fiber Patch Cord , 9 / 125 Fiber Pigtails Patch Cords

Large Image : G652D LC / APC - FC / UPC Lc Lc Fiber Patch Cord , 9 / 125 Fiber Pigtails Patch Cords

Product Details:

Place of Origin:	SHENZHEN,CHINA
Brand Name:	J&K
Certification:	ROHS
Model Number:	LC / APC - FC / UPC SM SX

Payment & Shipping Terms:

Minimum Order Quantity:	20PCS
Price:	Negotiation
Packaging Details:	PE Bag
Delivery Time:	3~5days
Payment Terms:	L/C, T/T

Contact Now

Detailed Product Description

Fiber Type:	G652D	Application:	FTTH FTTB FTTX Network
Length:	1m 2m 3m Or Customized	Product Name:	Fiber Optic Patch Cord
Operating Temperature:	-20℃~+70℃	Polish:	PC/UPC/APC
Highlight:	single mode to multimode fiber patch cord , duplex fiber optic patch cord

G652D LC / APC - FC / UPC SIMPLEX 9/125 fiber patch cord jumper cable

Features

Complied to ISO9001 quality system
100% testing before shipment
3D passed testing with report for option

Applications

Optical fiber communication system
Optical fiber test equipment
Optical fiber sensor
Industry and military application

Specifications

Mode	Single mode		Multimode
Polish	UPC	APC	PC
Insertion Loss	≤0.2dB	≤0.2dB	≤0.2dB
Return Loss	≥50dB	≥60dB	≥35dB
Test Wavelength	1310/1550nm		850/1310nm
Durability(500 Matings)	≤0.2dB
Operating Temperature	-20℃~+70℃
Storage Temperature	-40℃~+85℃
