SC / APC To FC / APC Fiber Optic Patch Cord Sc To FC Sm Sx LSZH Material

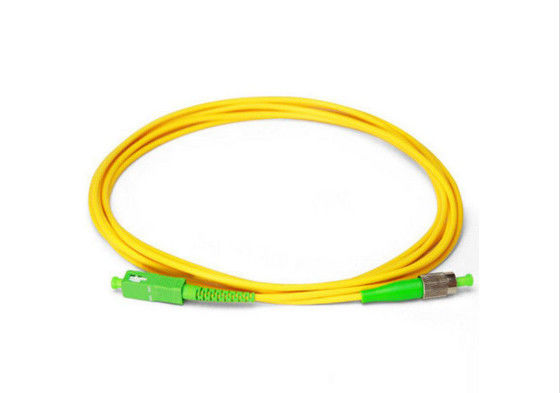

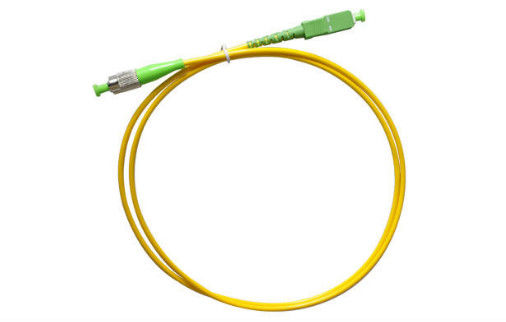

Large Image : SC / APC To FC / APC Fiber Optic Patch Cord Sc To FC Sm Sx LSZH Material

Product Details:

Place of Origin:	SHENZHEN,CHINA
Brand Name:	J&K
Certification:	ROHS
Model Number:	FC / APC - SC / APC SM SX

Payment & Shipping Terms:

Minimum Order Quantity:	20PCS
Price:	Negotiation
Packaging Details:	PE bag
Delivery Time:	3~5days
Payment Terms:	L/C, T/T

Contact Now

Detailed Product Description

Application:	FTTH FTTB FTTX Network	Length:	1m 2m 3m Or Customized
Insertion Loss:	<0.2dB	Product Name:	Fiber Optic Patch Cord
Polish:	PC/UPC/APC	Material:	LSZH
Highlight:	single mode to multimode fiber patch cord , fiber pigtails patch cords

SC / APC to FC / APC Fiber Optic Jumper, Sc to FC Sm Sx Fiber Optical Patch Cord / Cable

Features

Available in G652D, G657A, OM1, OM2, OM3 and OM4 fiber types.
All dielectric construction with aramid yarn for physical protection and mechanical strength.
Double LSZH sheath cable gives more excellent tensile strength,
mechanical, rodent, ultraviolet and environmental protection

Mechanical, Environmental & Material Data

Fiber Mode	Singlemode or Multimode
Fiber count	1
Connector Style	SC, FC, ST, LC, MU, E2000, DIN
Polish or Ferrule Interface Type	PC, UPC, APC
Cable Lengths	Custom Lengths
Jacket Material	LSZH
Outer Jacket Color	Black
Inner Jacket Color	White
Strength Member	Aramid Yarn
Outer Jacket Diameter(mm)	4.6 ±0.1
Inner Jacket Diameter(mm)	3.0 ±0.1
Crush(N/100mm)	1000
Maximum Tensile Load(Long term)	150N
Maximum Tensile Load(Short term)	400N
Storage Temperature(°C)	-20°C to 60°C
Installation Temperature(°C)	-5°C to 50°C
Operating Temperature(°C)	-20°C to 60°C

Optical Characteristics

Fiber Type	Max. Attenuation(dB/km)				Min.Overfill Launch Bandwidth (Mhz.km)		Min.Gigabit Ethernet Link Distance (m)
	Max. Attenuation(dB/km)				Min.Overfill Launch Bandwidth (Mhz.km)		Gigabit		10Gigabit
	850nm	1300nm	1310nm	1550nm	850nm	1300nm	850nm	1300nm	850nnm
OM1 62.5/125µm	≤2.7	≤0.6	-	-	≥500	≥600	275	550	-
OM2 50/125µm	≤2.3	≤0.6	-	-	≥500	≥500	750	600	150
OM3 50/125µm	≤2.3	≤0.6	-	-	≥1500	≥500	1000	600	300
OM4 50/125µm	≤2.3	≤0.6	-	-	≥3500	≥500	1100	600	550
G652D 9/125µm	-	-	≤0.30	≤0.18	-	-	-	-	-
G657A 9/125µm	-	-	≤0.35	≤0.21	-	-	-	-	-
