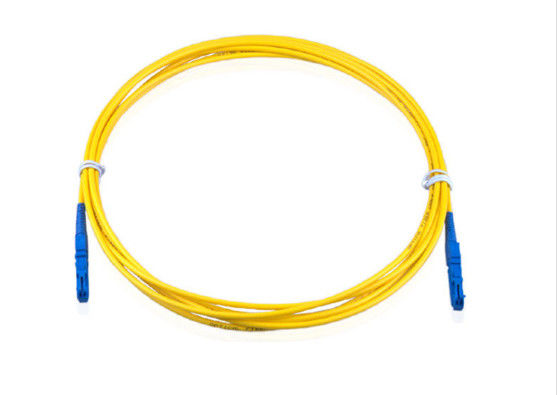

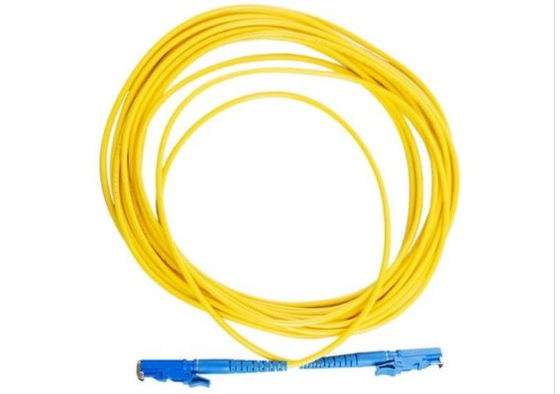

Yellow E2000 UPC Fiber Optic Patch Cord Custom Design For FTTX Network

Large Image : Yellow E2000 UPC Fiber Optic Patch Cord Custom Design For FTTX Network

Product Details:

Place of Origin:	SHENZHEN,CHINA
Brand Name:	J&K
Certification:	ROHS
Model Number:	E200/UPC

Payment & Shipping Terms:

Minimum Order Quantity:	20PCS
Price:	Negotiation
Packaging Details:	PE bag
Delivery Time:	3~5days
Payment Terms:	L/C, T/T

Contact Now

Detailed Product Description

Fiber Type:	G652D,G657A	Application:	FTTH FTTB FTTX Network
Length:	1m 2m 3m Or Customized	Repeatability:	≤ 0.1 DB
Polish:	PC/UPC/APC	Material:	PVC/LSZH
Highlight:	single mode to multimode fiber patch cord , duplex fiber optic patch cord

Simplex E2000 UPC fiber optic patch cord Customized Single mode

Features

Low insertion loss, high return loss
High dense connection, easy for operation
High credibility and stability
Good in repeatability and exchangeability

Applications

Testing equipment
FTTX+LAN
Optical fiber CATV
Optical communication system
Telecommunication

Specifications

Mode	SM		MM
Polish	UPC	APC	PC
Insertion Loss	Typical ≤0.2dB Maximum ≤0.3dB		≤0.25dB
Return Loss	≥50dB	≥65dB	≥35dB
Interchangeability	≤0.2dB
Repeatability	≤0.1dB
Durability	≤0.2dB (1000 times mating)
Tensile Strengh	> 10kg
Temperature	≤0.2dB (-40+85 sustain 100 hours)
Humidity	≤0.2dB (+25+65 93 R.H.100 hours)
