0.2dB Sc Apc Fiber Patch Cord , SC / UPC - E2000 / UPC G652D / G657A Cable Patch Cord

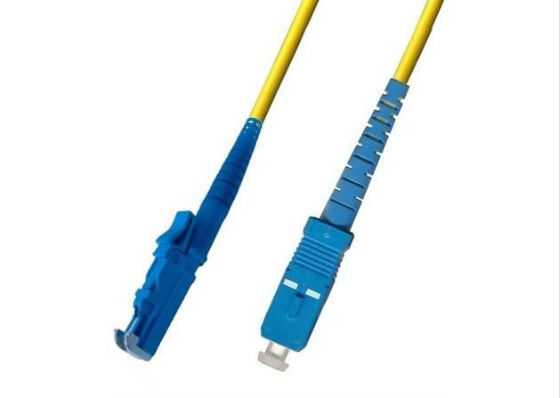

: Large Image : 0.2dB Sc Apc Fiber Patch Cord , SC / UPC - E2000 / UPC G652D / G657A Cable Patch Cord

Product Details:

Place of Origin:	SHENZHEN,CHINA
Brand Name:	J&K
Certification:	ROHS
Model Number:	E2000 / UPC - SC / UPC

Payment & Shipping Terms:

Minimum Order Quantity:	20PCS
Price:	Negotiation
Packaging Details:	PE Bag
Delivery Time:	3~5days
Payment Terms:	L/C, T/T

Contact Now

Detailed Product Description

Application:	FTTH FTTB FTTX Network	Length:	1m 2m 3m Or Customized
Insertion Loss:	≤0.3dB	Material:	PVC/LSZH
Product Name:	Fiber Optic Patch Cord	Wavelength:	1310nm Or 1550nm
Highlight:	single mode to multimode fiber patch cord , fiber pigtails patch cords

0.2dB SC / UPC - E2000 / UPC G652D / G657A Sm Sx Fiber Optic Patchcord

Features

Repeat Plug feature is good, good interchangeability
Ceramic Ferrule, high-density docking, concentricity ≤0.5
Can provide general PVC or LSZH cable cable

Applications

Telecommunications
CATV, LAN, MAN, WAN, test and measurement
Military industry

Specifications

Item	Mode Type	PC	SPC	UPC	APC
Insertion Loss	SM	≤0.25dB	≤0.20dB	≤0.20dB	≤0.15dB
Insertion Loss	MM	≤0.30dB	≤0.20dB	≤0.20dB	≤0.30dB
Return Loss	SM	≥45dB	≥50dB	≥55dB	≥65dB
Return Loss	MM	≥35dB	≥35dB	≥35dB	≥35dB
Repetition Test		Additional Loss≤0.1dB,Reture Loss Variability<5dB
Temperature Stability(-40ºC~85ºC)		Additional Loss≤0.2dB,Reture Loss Variability<5dB
Operating Temperature		-40ºC~+75ºC
Storage Temperature		-40ºC~+75ºC
