FTTH E2000 Fiber Optic Patch Cord 1 - 3m Length 3D Passed Testing Polished

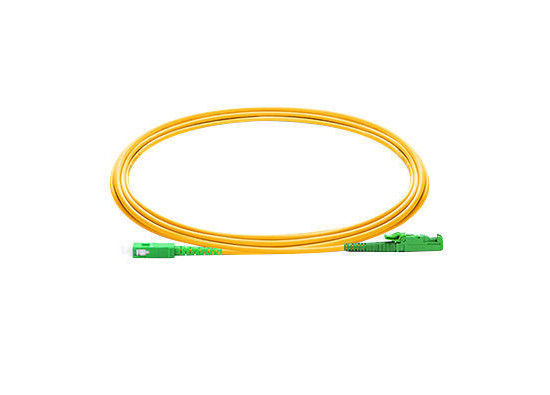

Large Image : FTTH E2000 Fiber Optic Patch Cord 1 - 3m Length 3D Passed Testing Polished

Product Details:

Place of Origin:	SHENZHEN,CHINA
Brand Name:	J&K
Certification:	ROHS
Model Number:	E2000/APC SM SX

Payment & Shipping Terms:

Minimum Order Quantity:	10PCS
Price:	Negotiation
Packaging Details:	PE bag
Delivery Time:	3~5days
Payment Terms:	L/C, T/T

Contact Now

Detailed Product Description

Application:	FTTH FTTB FTTX Network	Length:	1m 2m 3m Or Customized
Insertion Loss:	≤0.3dB, ≤0.2dB	Material:	PVC/LSZH
Product Name:	Fiber Optic Patch Cord	Polish:	PC/UPC/APC
Highlight:	duplex fiber optic patch cord , fiber pigtails patch cords

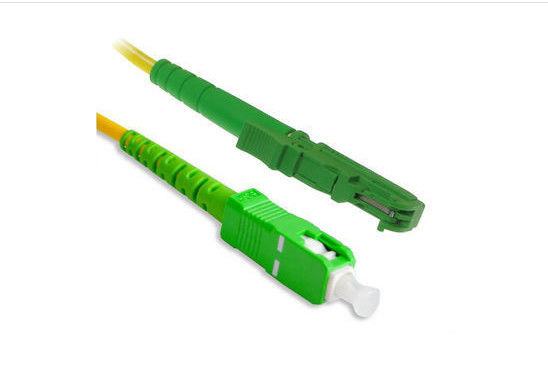

FTTH E2000 APC - SC / APC Fiber Optic Patch Cord, Single Mode Simplex Cable

Features

The material of Ceramic Ferrule: Zirconium quality stable and easy for polishing
100% testing before shipment
3D passed testing with report for option

Specifications

Mode	Single mode		Multimode
Polish	UPC	APC	PC
Insertion Loss	≤0.2dB	≤0.2dB	≤0.3dB
Return Loss	≥55dB	≥65dB	≥35dB
Interchangeability	≤0.2dB
Salt Spray	≤0.1dB
Repeatability	≤0.1dB (1000 times)
Vibration	≤0.2dB (550Hz 1.5mm)
Temperature	≤0.2dB (-40+85 sustain 100 hours)
Humidity	≤0.2dB (+25+65 93 R.H.100 hours)
Apex Offset	0μm ~ 50μm
Radius of Curvature	7mm ~ 25mm
Standards-Compliant	ROHS,IEC and GR-326
