1M / 2M / 3M Lc Fiber Patch Cord , Various Connector Duplex Fiber Patch Cord

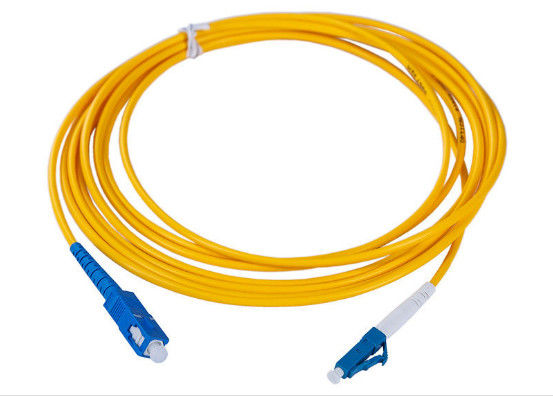

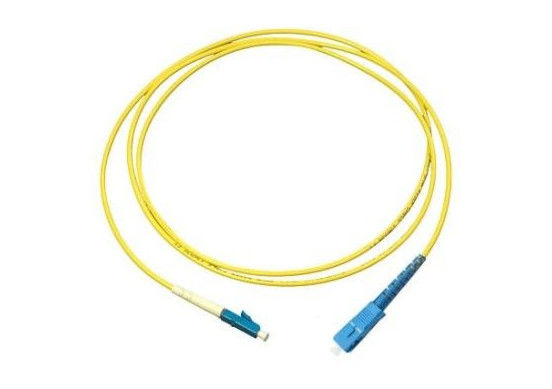

Large Image : 1M / 2M / 3M Lc Fiber Patch Cord , Various Connector Duplex Fiber Patch Cord

Product Details:

Place of Origin:	SHENZHEN,CHINA
Brand Name:	J&K
Certification:	ROHS
Model Number:	LC / UPC - SC / UPC

Payment & Shipping Terms:

Minimum Order Quantity:	20PCS
Price:	Negotiation
Packaging Details:	PE Bag
Delivery Time:	3~5days
Payment Terms:	L/C, T/T

Contact Now

Detailed Product Description

Application:	FTTH FTTB FTTX Network	Length:	1m 2m 3m Or Customized
Material:	PVC/LSZH	Product Name:	Fiber Optic Patch Cord
Polish:	PC/UPC/APC	Color:	Yellow
Highlight:	single mode to multimode fiber patch cord , duplex fiber optic patch cord

SC / UPC - LC / UPC G652D SM SX Jamper 1M 2M 3M Fiber Optic Patch Cord

Features

Various connector types available
Low insertion loss and back reflection loss
Good exchangeability
Good Durability
High temperature stability
Standard: Telcordia GR-326-CORE

Applications

Telecommunication networks
Active device termination
Metro
Local Area Networks(LANs)
Test equipment
Premise installations

Specifications

Parameters	Standard Fiber Cable Assemblies
Fiber Type	SM(G.652/G.657A)	MM(OM1/OM2/OM3/OM4/OM5)
Jacket Materials	LSZH/OFNR/PVC
Connector Type	SC/LC/ST/LC/MU/DIN/SMA/MTRJ/MPO/E2000
Ferrule Materials	Ceramic
Testing Wavelengths	1310±30/1550±30nm	850±30/1300±30nm
Insertion Losss(dB)	≤ 0.25dB(PC/UPC/APC)	≤ 0.3dB(PC/UPC)
Return Loss(dB)	≥50dB(PC/UPC) ≥60dB(APC)	≥40dB(PC/UPC)
Exchangeability	≤ 0.2dB
Cable Assemblies	Pigtail/Simplex/Duplex/Fan-out Patchcord
Operating Temperature (° C)	-10~ + 70
Storage Temperature (° C)	-40 ~ +85
Package	1unit/bag
*All values specified are with connectors.
