FC SX PC / APC Fiber Optic Connectors SM / MM Fiber Type High Return Loss

China FC SX PC / APC Fiber Optic Connectors SM / MM Fiber Type High Return Loss supplier
FC SX PC / APC Fiber Optic Connectors SM / MM Fiber Type High Return Loss supplier FC SX PC / APC Fiber Optic Connectors SM / MM Fiber Type High Return Loss supplier FC SX PC / APC Fiber Optic Connectors SM / MM Fiber Type High Return Loss supplier

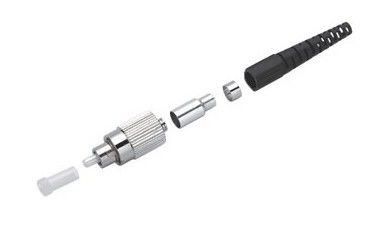

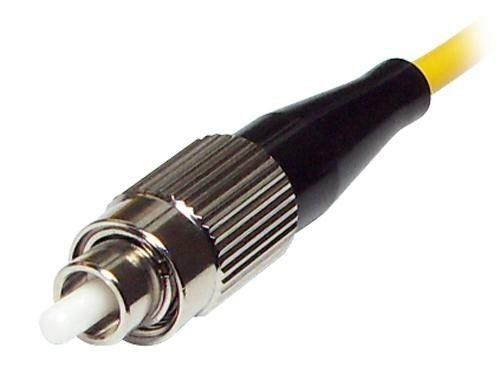

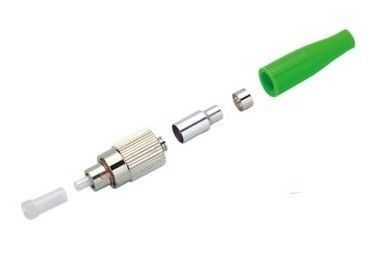

Large Image :  FC SX PC / APC Fiber Optic Connectors SM / MM Fiber Type High Return Loss

Product Details:

Place of Origin: SHENZHEN,CHINA
Brand Name: J&K
Certification: ISO9001:2015 , RoHS
Model Number: FC/PC/APC

Payment & Shipping Terms:

Minimum Order Quantity: 100PCS
Price: Negotiation
Packaging Details: PE bag/carton
Delivery Time: 3~5days
Payment Terms: L/C, T/T
Detailed Product Description
Product Name: Fiber Optic Connector Application: FTTH FTTB FTTX Network
Type: PC/UPC/APC Fiber Type: SM Or MM
Operating Temperature: -40~75℃ Durability: ≤ 0.1db Typical Change
Highlight:

plastic fiber optic cable connectors

,

terminate fiber lc connector

FC SX PC / APC Fiber Optics Connector



Features:

  1. High return loss
  2. Low insterion loss
  3. Telcordia style boots
  4. Compiance with TIA/IEA, IEC, RoHS

Applications:

  • CATV, Metro, LAN
  • Active device temination
  • Telecommunication networks
  • Industrial, medical, military

Ordering Information:

  • Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
  • Ferrule End-face: PC, UPC, APC
  • Core Type: Single mode(SM: 9/125um), Multimode(MM: 50/125um or 62.5/125um)
  • Core quantity: Simplex(SX), Duplex(DX)
  • Cable diameter: 0.9mm, 2.0mm, 3.0mm
  • Cable Length: 1M, 2M, 3M...
  • Cable type: PVC, LSZH, OM3, OFNR, OFNP, Armoured...
  • Color: Yellow, Orange, Green, Red, Blue...
Specification

Item APC(Standard) APC(Standard)
IL (Insertion Loss) ≤ 0.3dB ≤ 0.2dB
RL (Return Loss) ≥ 50dB ≥ 55dB
Operating Temperature -40 to 75
Durability ≤ 0.1dBtypical change, 500matings
Available Wavelength SM=1310& 1550nm

FC SX PC / APC Fiber Optic Connectors SM / MM Fiber Type High Return Loss

FC SX PC / APC Fiber Optic Connectors SM / MM Fiber Type High Return Loss
