Product Details:
Payment & Shipping Terms:
|
| Product Name: | Fiber Optic Connector | Application: | FTTH FTTB FTTX Network |
|---|---|---|---|
| Insertion Loss: | SM≤0.2 DB,MM≤0.25 DB | Return Loss: | PC≥50 DB,UPC≥55 DB,APC≥65 DB |
| Operating Temperature: | -40°C ~ +80°C | Durability: | ≤ 0.2db Typical Change |
| Highlight: | plastic fiber optic cable connectors,terminate fiber lc connector |
||

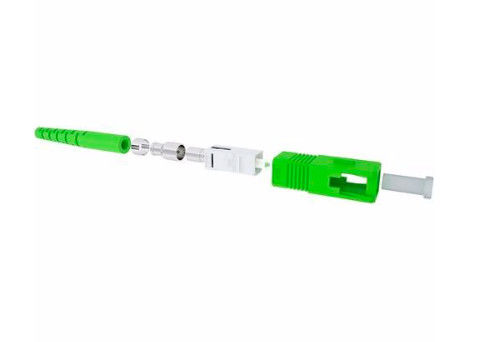

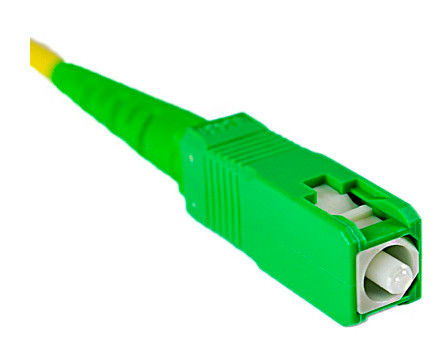

SC APC Fiber Optic Connector, Fiber Optical Cable Connector, SM MM SX DX Fiber Connector
Features
Applications
Specifications
| Specifications | ||
| Single mode | Multimode | |
| Insert Loss | ≤0.20dB | ≤0.25dB |
| Return Loss | ≥50 dB (PC) | |
| ≥55 dB (UPC) | ||
| ≥65 dB (APC) | ||
| Durability | <0.20 dB typical change, 1000 mating | |
| Operating Temperature | From -40 to + 80°C | From -40 to + 80°C |
| Ferrule Hole Sizes | 125.0+1/-0μm, Concentricity: ≤1.0μm | 125μm, Concentricity: 1≤3μm |
| 125.5+1/-0μm, Concentricity: ≤1.0μm | 127μm, Concentricity: 1≤3μm | |
| 126.0+1/-0μm, Concentricity: ≤1.0μm | 128μm, Concentricity: 1≤3μm | |
