| Insertion Loss: | ≤ 0.4dB,≤ 0.3dB | Product Name: | Fiber Optic Connector |
|---|---|---|---|
| Application: | FTTH FTTB FTTX Network | Repeatability: | ≤ 0.2dB |
| Type: | UPC/APC | Fiber Type: | SM Or MM |
| Highlight: | quick connect fiber optic connectors,terminate fiber lc connector |
||

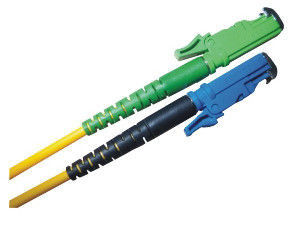

The E2000 connector has a push-pull coupling mechanism, with an automatic metal shutter in the connector and adapter as dustand laser beam protection One-piece design for easy and quick termination, used for high safety andhighpower applications.
1. Low IL &High RL
2. Latched push-pull operation
3. High quality ceramic Ferrule
4. Automatic metal shutter
| Connector Type | Insertion Loss | Return Loss | Repeatibily (500 Mating) | Exchangeability | ||
| E2000/UPC Single mode | ≤ 0.4dB | 50dB | ≤ 0.2dB | ≤ 0.2dB | ||
| E2000/APC Single mode | ≤ 0.4dB | 60dB | ≤ 0.2dB | ≤ 0.2dB | ||
| E2000 Multimode | ≤ 0.3dB | - | ≤ 0.2dB | ≤ 0.2dB | ||
