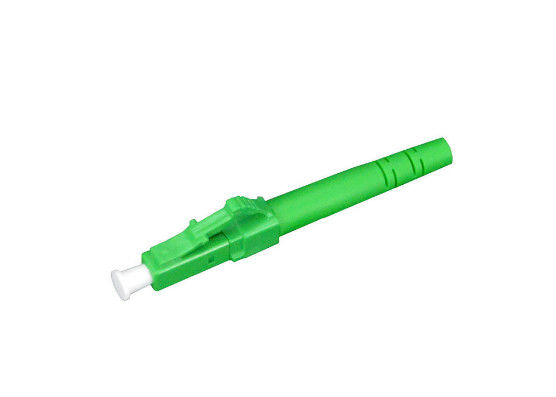

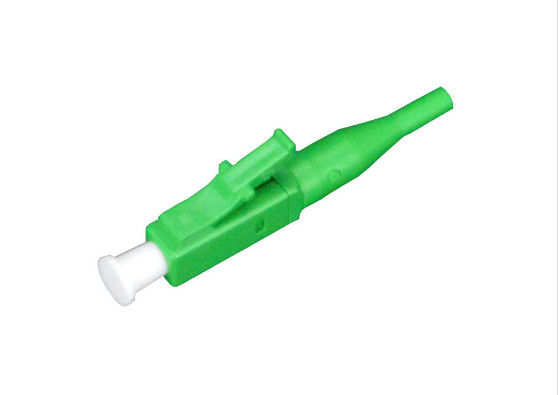

LC APC Polish Single mode Fiber Optic Connectors 9 / 125 Simplex 0.9mm / 2.0mm Boot Size

Large Image : LC APC Polish Single mode Fiber Optic Connectors 9 / 125 Simplex 0.9mm / 2.0mm Boot Size

Product Details:

Place of Origin:	SHENZHEN,CHINA
Brand Name:	J&K
Certification:	IS09001-2008.ROHS
Model Number:	LC/APC Connector

Payment & Shipping Terms:

Minimum Order Quantity:	1000PCS
Price:	Negotiation
Packaging Details:	PE Bag
Delivery Time:	3~5days
Payment Terms:	L/C, T/T

Contact Now

Detailed Product Description

Product Name:	Fiber Optic Connector	Color:	Green
Application:	FTTH FTTB FTTX Network	Connector Type:	LC/APC
Operating Temperature:	-20~70℃	Fiber Mode:	SM Or MM
Highlight:	plastic fiber optic cable connectors , terminate fiber lc connector

LC APC Polish Single - mode 9 / 125 Simplex 0.9mm 2.0mm Boot Size Fiber Optic Connector

Features

Superior qualified standard polishing;
100% optic test: Insertion Loss: ≤0.3 (PC); ≤0.2 (APC); ≤0.2 (UPC); ≤0.3 (SPC);
100% optic test: Return Loss: ≥45 (PC); ≥60 (APC); ≥55 (UPC); ≥50 (SPC);
φ0.9mm, φ2.0mm, φ3.0mm cable optional
Simplex and duplex connector available;
Good exchange ability and good durability;

Applications

Telecommunication
CATV
LAN (including FITL, FTTH and FTTD)
Data network

Specifications

ITEM	PARAMETER
Applicative Connector Type	SC,LC,FC,ST,MU,D4,DIN
Fiber mode	Single mode	Multi-mode
Test wavelength	1310nm, 1550nm	850nm, 1300nm
Insertion Loss	typical≤0.20dB,Max≤0.30dB	typical≤0.15dB,Max≤0.25dB
Return Loss	UPC≥50.0dB,APC≥60.0dB	≥35.0dB
Durability	≤0.20dB typical change,1000 mating
Applicative cable OD.	∮0.9mm/∮1.8mm&∮2.0mm /∮3.0mm (MU only ∮0.9mm/∮2.0mm)
Connector Ferrule OD.	∮2.5mm:SC, FC,ST,DIN; ∮2.0mm:D4; ∮1.25mm:LC,MU
Angle BOOT	SC,LC(45 or 90 degree)
Operating Temperature	-20ºC to +70ºC
Storage Temperature	- 40ºC to +85ºC
Ferrule Specification	125.3+1/-0μm, Concentricity: ≤1.0μm	127+3/-0μm, Concentricity: ≤3.0μm
