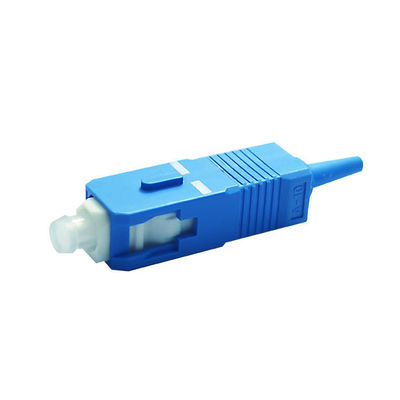

Housing SC / UPC Industrial Fiber Optic Connectors , FTTH Sc Single Mode Fiber Connectors

China Housing SC / UPC Industrial Fiber Optic Connectors , FTTH Sc Single Mode Fiber Connectors supplier

Large Image :  Housing SC / UPC Industrial Fiber Optic Connectors , FTTH Sc Single Mode Fiber Connectors

Product Details:

Place of Origin: SHENZHEN,CHINA
Brand Name: J&K
Certification: IS09001-2015.ROHS
Model Number: SC/UPC SM

Payment & Shipping Terms:

Minimum Order Quantity: 5000PCS
Price: Negotiation
Packaging Details: PE bag/carton
Delivery Time: 3~5 days
Payment Terms: L/C, T/T
Detailed Product Description
Product Name: Fiber Optic Connector Application: FTTH FTTB FTTX Network
Insert Loss: <0.2dB Return Loss: ≥45dB
Operating Temperature: -40~70℃ Type: PC/UPC
Highlight:

quick connect fiber optic connectors

,

terminate fiber lc connector

1.Our advantage and special services:



1. With our own R&D, more completed production lines, advanced production & testing equipments, experienced staffs, we’re confident to provide you satisfied quality and service with competitive price and punctual delivery.



2. Rich experiences in OEM&ODM, besides standard items, we can help you design unique new products and put into production. We care about innovation and would like to change for you and grow up with you.



3. Prompt answer for any question or inquiry within 2 hours



4. One or several solutions available for every case.



5. Using ERP Systerm to ensure that each link is correct.



Housing SC / UPC Industrial Fiber Optic Connectors , FTTH Sc Single Mode Fiber Connectors

2. Features:



1) Superior qualified standard polishing;
2) 100% optic test: Insertion Loss: ≤0.3 (PC); ≤0.2 (APC); ≤0.2 (UPC); ≤0.3 (SPC);



3) 100% optic test: Return Loss: ≥45 (PC); ≥60 (APC); ≥55 (UPC); ≥50 (SPC);



4) φ0.9mm, φ2.0mm, φ3.0mm cable optional



5) Simplex and duplex connector available;



6) Good exchange ability and good durability;



7) Available in fiber bunch, ribbon fan-out, pigtail available;



8) Meets ISO9001, ROHS and Bell core GR 326-core standards;



9) Customized specifications are welcomed.







3. Applications:



1) CATV, metro test equipment; FTTH;



2) Telecommunication networks;



3) Local area networks (LAN);



4) Wide area networks (WAN);



5) Premise installations;



6) Data processing networks;



7) Video and military active device termination.



8) Optical Distribution Frame



9)Optical Network Equipments




4. Specification
Item(Connector) Parameter
Fiber Type Single-mode
Insertion Loss <0.2dB
Return Loss ≥45dB
Polishing Type PC UPC
Operation Temp -40°C ~ 70°C
Tensile strength >50N
