Product Details:
Payment & Shipping Terms:
|
| Application: | FTTH FTTB FTTX Network | Length: | 1m 2m 3m Or Customized |
|---|---|---|---|
| Material: | PVC/LSZH | Product Name: | Fiber Optic Patch Cord |
| Wavelength: | 1310nm Or 1550nm | Polish: | PC/UPC/APC |
| Highlight: | single mode to multimode fiber patch cord,duplex fiber optic patch cord |
||
►Application:
- FTTH , CATV, LAN, MAN, WAN, Test &Measurement
- Fiber-optic communication system
- Fiber-optic data transmission
- Fiber-optic testing system
►Specification:
| Item | Unit | FC,SC,LC | ST,MU | MT-RJ, MPO | E2000 | ||||||||
| SM | MM | SM | MM | SM | MM | SM | |||||||
| PC | UPC | APC | PC | UPC | PC | PC | PC | UPC | PC | PC | UPC | ||
| Insertion loss(typical) | dB | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 |
| Return loss | dB | ≥45 | ≥50 | ≥60 | ≥30 | ≥45 | ≥50 | ≥30 | ≥45 | ≥50 | ≥35 | ≥55 | ≥75 |
| Operating wavelength | nm | 1310,1510 | 1310,1510 | 1310,1510 | 1310,1510 | ||||||||
| Exchengeability | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ||||||||
| Vibration | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ||||||||
| Operating temperature | °C | -40~75 | -40~75 | -40~75 | -40~75 | ||||||||
| Storage temperature | °C | -45~85 | -45~85 | -45~85 | -45~85 | ||||||||
| Cable Diameter | mm | φ3.0,φ2.0,φ0.9 | φ3.0,φ2.0,φ0.9 | φ3.0,φ2.0,φ0.9 | φ3.0,φ2.0,φ0.9 | ||||||||
►Features:
- In-line with Telcordia GR-326-CORE standard
- Low insertion loss, high return loss, high reliability
- Good repeatability, interchangeability
- Any diameter of fiber can be chose, 0.9, 2, 3mm ,10g fiber, low smoke and zero halogen can be chosen
►Raw materials:
- Inner frame: PBT, white (RoHS)
- Ferrule: zirconium oxide ceramic material, white (RoHS)
- Ferrule’s handle: copper (C3602), nickelage (RoHS)
- Mechanical spring: stainless steel (RoHS)
- Locating snap ring: copper alloy (HPD59-1), nickelage (RoHS)
- Snap ring: aluminium alloy 6063 (RoHS)
- Ring: copper alloy (HPD62), nickelage (RoHS)
- Boot: nylon or PBT, UPC/blue, APC/green, MM/beige
- Cable: SM/OM1/OM2/OM3/OM4, PVC/LSZH/OFNP
►Order information:

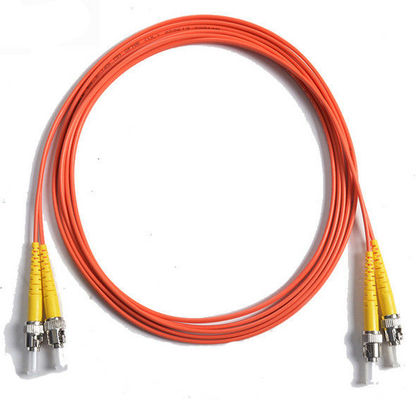

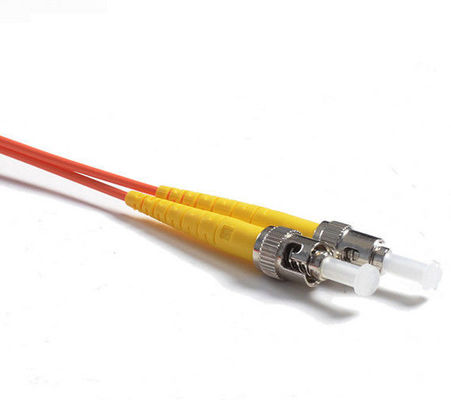

- For example: ST/UPC to ST/UPC SM DX 3.0mm PVC orange Patch Cord
- Type: SX/DX optional
- Ferrule type: APC/PC
- Diameter: 0.9, 2.0, 3.0mm
- Length: 1, 2, 3 to 120m
- Fiber: SM/OM1/OM2/OM3/OM4
- Material of jacket: PVC/LSZH/OFNP
