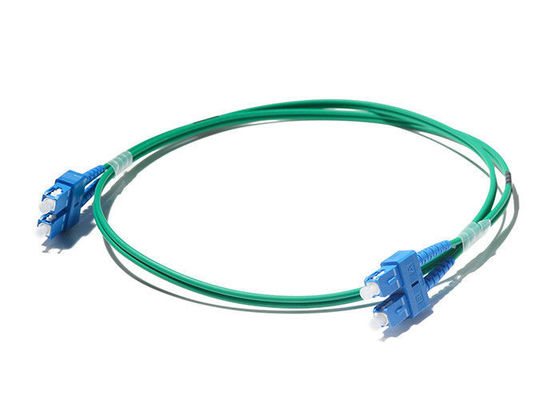

Telecommunications Sc Fiber Patch Cord , Green Fiber Patch Cord Sc To Sc

: Large Image : Telecommunications Sc Fiber Patch Cord , Green Fiber Patch Cord Sc To Sc

Product Details:

Place of Origin:	SHENZHEN,CHINA
Brand Name:	J&K
Certification:	IS09001-2015.ROHS
Model Number:	SC/SC

Payment & Shipping Terms:

Minimum Order Quantity:	10PCS
Price:	Negotiation
Packaging Details:	standard export package
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, T/T

Contact Now

Detailed Product Description

Application:	FTTH FTTB FTTX Network	Length:	1m 2m 3m Or Customized
Insertion Loss:	≤0.3dB,≤0.2dB	Material:	PVC/LSZH
Product Name:	Fiber Optic Patch Cord	Polish:	PC/UPC/APC
Highlight:	single mode to multimode fiber patch cord , duplex fiber optic patch cord

Products advantages:
1. The material of Ceramic Ferrule: Zirconium quality stable and easy for polishing
2. Good supply capacity(20K-30K pieces connectors each day)
3. Fast delivery time(5-7days)
4. Complied to ISO9001 quality system
5. 100% testing before shipment
6. 3D passed testing with report for option
7. All kinds of connector for option(SC,LC,FC,ST,MU,MTRJ,MPO/MTP,ODC,ODLC,SMA905 and so on)

Specification

Mode	Single mode		Multimode
Polish	UPC	APC	PC
Insertion Loss	≤0.2dB	≤0.2dB	≤0.3dB
Return Loss	≥55dB	≥65dB	≥35dB
Interchangeability	≤0.2dB
Salt Spray	≤0.1dB
Repeatability	≤0.1dB (1000 times)
Vibration	≤0.2dB (550Hz 1.5mm)
Temperature	≤0.2dB (-40+85 sustain 100 hours)
Humidity	≤0.2dB (+25+65 93 R.H.100 hours)
Apex Offset	0μm ~ 50μm
Radius of Curvature	7mm ~ 25mm
Standards-Compliant	ROHS,IEC and GR-326

Fiber cable performance specifications
Fiber type	Min.Bandwidth	Distance	attenuation
62.5/125	850/1300nm 200/500 MHz/Km	@100Mbps 2km @1Gig 220m	850/1300nm 3.0/1.0dB/km
50/125	850/1300nm 500/500 MHz/Km	@100Mbps 2km @1Gig 500m	850/1300nm 3.0/1.0dB/km
50/125 10Gig Optimized	850/1300nm 2000/500 MHz/Km	@100Gig Varies by VCSEL typical 300m 2850nm	850/1300nm 3.0/1.0dB/km
9/125	1310/1550nm Approx 100 Terahertz	Up to 100km Varies by transceiver	1310/1550nm 0.4/0.3dB/km

Fiber type	Single mode: 1,9/125-G652D 2,9/125-G655 3,9/125-G657
Fiber type	Multimode: 4,50/125-OM2 5,62.5/125-OM1 6,50/125-OM3
Fiber	Corning,China Fiber,other
Connector1	SC,FC,LC,ST,MU,DIN,MTRJ,E2000,MPO,SMA,D4 and others
Polishing	PC,UPC,APC,MTRJ Male connector,MTRJ female connector
Connector2	SC,FC,LC,ST,MU,DIN,MTRJ,E2000,MPO,SMA,D4 and others
Polishing	PC,UPC,APC,MTRJ Male connector,MTRJ female connector
Cord type	Simplex ,Duplex
Cable diameter	0.9mm ,2.0mm,1.8mm 3.0mm
Cable jacket	PVC,LSZH,OFNR,OFNP
length(M)	0.5m,1m,3M,5m,10m,20m,200m

Applications
1. FTTH (Fiber To The Home)
2. Optical fiber data communication
3. Optical fiber access networks
4. Optical fiber communications system
5. Telecommunications
6. CATV, LAN, MAN, WAN, Test &Measurement
7. Military industry
8. Medical
