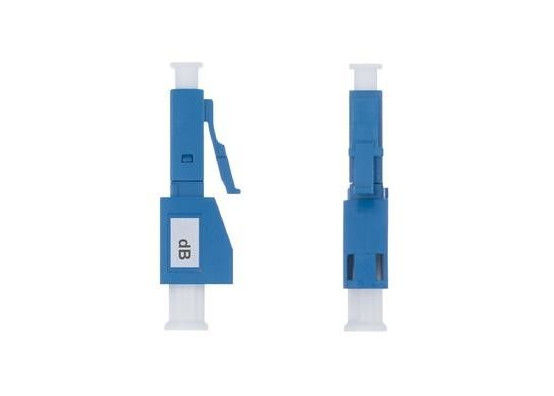

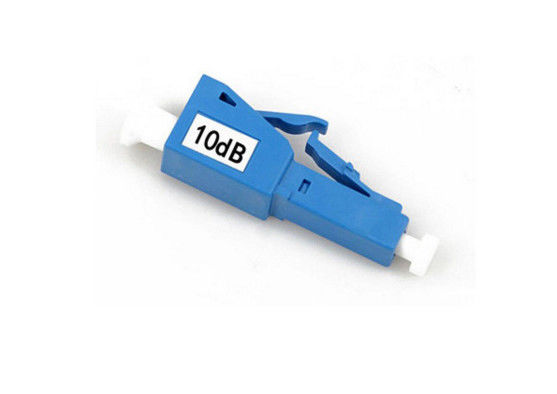

Blue LC 10DB Fiber Optic Attenuator Male To Female With Plastic / Metal Housing

Large Image : Blue LC 10DB Fiber Optic Attenuator Male To Female With Plastic / Metal Housing

Product Details:

Place of Origin:	SHENZHEN,CHINA
Brand Name:	J&K
Certification:	ISO9001:2008
Model Number:	LC/UPC Attenuator

Payment & Shipping Terms:

Minimum Order Quantity:	50PCS
Price:	Negotiation
Packaging Details:	PE bag
Delivery Time:	3~5days
Payment Terms:	L/C, T/T

Contact Now

Detailed Product Description

Product Name:	Fiber Attenuator	Material:	Metal,Plastic
Attenuation Level Range:	0~30dB	Durability:	≤0.20dB Typical Change,1000 Mating
Operating Temperature:	-20ºC To +70ºC	Storage Temperature:	-40ºC To +85ºC
Highlight:	fixed optical attenuator , single mode fiber attenuator

0 - 30db LC / Upc Single Mode Multimode Male to Female Fiber Optic Attenuator

Features

High quality ceramic ferrule
Excellent IL and high return loss
Good exchangeability and durability
High temperature stability
All parts compliant with ROHS
Aompliant with Telcordia-GR-910-CORE.

Applications

Active device termination
Test equipment
Passive optical fiber network
Data processing network
Telecommunication network
CATV, LAN, WAN

Specifications

ITEM	Parameter
	Single-mode	Multi-mode
Test wavelength	1310nm, 1550nm	850nm
Return Loss	UPC≥50.0dB,APC≥60.0dB	≥35.0dB
Bandwidth	1250~1650nm
Insertion Loss range	0~30dB
Attenuation tolerance value	0~5dB,±0.5dB
	5~30dB,±10%
Repeatability	≤0.10dB
Interchangeability	≤0.20dB
Durability	≤0.20dB typical change,1000 mating
Optical power endurance	≤200mW
Operating Temperature	-20ºC to +70ºC
Storage Temperature	-40ºC to +85ºC
