FC UPC Fiber Optic Attenuator 10dB Fixed Flange Single Core 1260 - 1620nm Wavelength

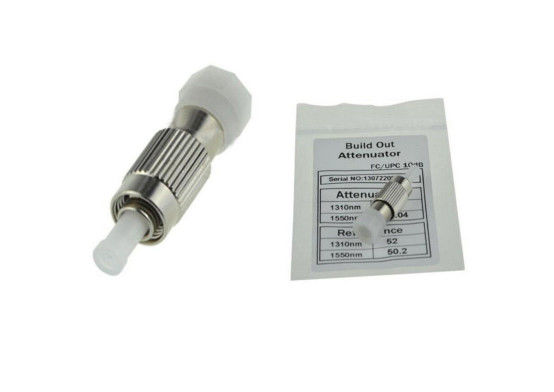

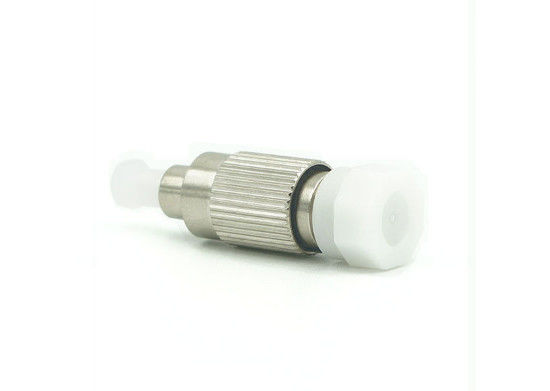

Large Image : FC UPC Fiber Optic Attenuator 10dB Fixed Flange Single Core 1260 - 1620nm Wavelength

Product Details:

Place of Origin:	SHENZHEN,CHINA
Brand Name:	J&K
Certification:	ISO9001:2008
Model Number:	FC/UPC M/F

Payment & Shipping Terms:

Minimum Order Quantity:	50PCS
Price:	Negotiation
Packaging Details:	PE Bag
Delivery Time:	3~5days
Payment Terms:	L/C, T/T

Contact Now

Detailed Product Description

Wavelength:	1260 To 1620nm	Product Name:	Fiber Attenuator
Polarization Dep Loss:	≤0.2dB	Return Loss:	≥ 65dB
Operating Temp Range:	-40ºC~75ºC	Storage Temp Range:	-40ºC~80ºC
Highlight:	fixed optical attenuator , single mode fiber attenuator

10dB FC UPC male to Female Single Mode Fixed Flanged Attenuator

Products Description:
FC/UPC Fixed Optical Attenuator is a component installed in a fiber optic transmission system that reduces the power in the optical signal. It is often used to limit the optical power received by the photo detector to within the limits of the optical receiver.
Features

Fully compatible with FC fiber optic connectors;
Precise attenuation values;
Industry standard attenuation levels;
Low PDL and insertion loss;
Precision polishing for reduced back reflection;
Highly Reliable Physical Contact Connectors;
Compartmentalized case provides safe component storage and simple organization;
Small, durable case for easy portability;
RoHS compliant.

Items Details:

Fiber Connector	FC/UPC	Connector Gender	Fixed Female to Female
Transfer Mode	Singlemode	Attenuation	1~25dB
Operating Wavelength(nm)	1260~1620(SM)	Attenuation Accuracy	1-5dB ±0.5, 6-10dB ±0.7, >10dB ±1.0
Return loss	≥ 65dB	Max Optical Input Power	200mW
Operating Temp Range	-40ºC~75ºC	Polarization Dependent Loss	≤ 0.2dB
Storage Temp Range	-40ºC~80ºC	Humidity	95%RH

Application:

Optical attenuators are commonly used in fiber optic communications, either to test power level margins by temporarily adding a calibrated amount of signal loss;
Installed permanently to properly match transmitter and receiver levels;
Sharp bends stress optic fibers and can cause losses;
Telecommunications;
Multi-Channel Subscriber loop;
Optical Transmission System.

Payment & Shipping Terms:

Minimum Order Quantity	20 PCS
Price	Negotiations
Packaging Details	1pc / PE Bag, then with carton packaging
Delivery Time	3 - 7 Business Days
Payment Terms	L/C, T/T, Western Union,Paypal
Supply Ability	10000 pcs / day
Shipment By	Fedex; DHL; TNT
Certification	CE/ROHS/ISO9001
Model Number	FC Attenuator
