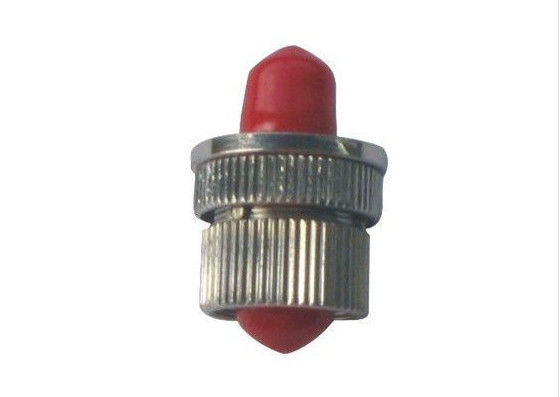

Adjustable FC Fiber Optic Attenuator 0 - 30dB Precision Ceramic Ferrule

: Large Image : Adjustable FC Fiber Optic Attenuator 0 - 30dB Precision Ceramic Ferrule

Product Details:

Place of Origin:	SHENZHEN,CHINA
Brand Name:	J&K
Certification:	ISO9001:2015, SGS, RoHS

Payment & Shipping Terms:

Minimum Order Quantity:	50PCS
Price:	Negotiation
Packaging Details:	Plastic box
Delivery Time:	3~5days
Payment Terms:	L/C, T/T

Contact Now

Detailed Product Description

Application:	FTTH FTTB FTTX Network	Wavelength:	1310/1550nm
Return Loss:	PC:≥50dB UPC:≥55dB APC:≥60dB	Product Name:	Fiber Attenuator
Attenuation Tolerance:	≤1.0(11-30dB)	Attenuation Level Range:	0~30dB
Highlight:	fixed optical attenuator , voltage variable attenuator

Adjustable Type FC Fiber Optic Adapter 0-30dB Precision Ceramic Ferrule

Features

High durability;
Attenuation levels from 1dB to 30dB;
Metal-ion doped fiber;
Compliance with TIA/IEA, IEC, RoHS.

Applications

EDFA,DWDM,Long-haul;
Wide-Area networks;
Telecommunication networks;
Gigabit applications (ATM, Ethernet).

Specifications

Item	Unit	Parameter
Operating Wavelength	Nm	1310-1550
Attenuation Range	dB	1-10dB(1dB step),15,20,25,30dB
Return Loss	dB	PC:≥50 UPC:≥55 APC:≥60
Attenuation Tolerance	dB	≤1.0(11-30dB)
Working Temperature	°C	-50~+75
Storage Temperature	°C	-40~+75

Ordering information

Type: Adapter (Female to Female),Connector (Male to Female),In-line type,and variable type for your choice;
Attenuation Range:1-30dB;
Housing color: MM beige,SM UPC Blue,SM APC Green;
LC,SC,FC,ST,etc attenuator for your requests;
UPC and APC option.
