Product Details:
Payment & Shipping Terms:
|
| Wavelength: | SM1310/1550nm,MM: 850nm / 1300nm | Product Name: | Fiber Attenuator |
|---|---|---|---|
| Attenuation Level Range: | 0~30dB | Attenuation Range: | 1~30dB |
| Durability: | <0.2dB | Operating Temp: | -20~75℃ |
| Highlight: | fixed optical attenuator,single mode fiber attenuator |
||
SC APC Single mode attenuator
Features
Applications
Product Pictures

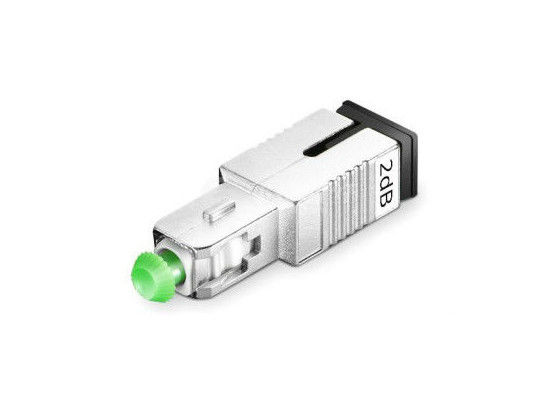

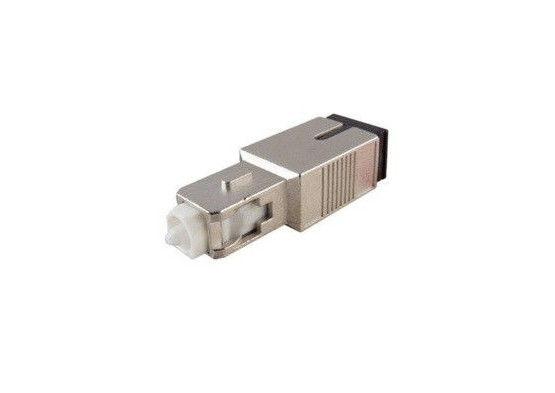

SC APC Single mode attenuator
Specifications
| Optical Performance | M-F Plug Type/ In line Type | F-F Adaptor Type |
| Operating Wavelength | SM 1260-1600nm MM 1260-1320nm | |
| Testing Wavelength | SM: 1310nm / 1550nm | 1310nm |
| MM: 850nm / 1300nm | ||
| Attenuation Accuracy | 1-9 dB 0.5dB 10-30dB 10%of Attenuation Value |
|
| Return Loss | ≥45 dB (PC) | N/A |
| ≥50 dB (UPC) | ||
| ≥ 60 dB (APC) | ||
| Input Power (Max.) | 200mW | |
| Durability | <0.20 dB Typical, 1000 matings | |
| Operating Temp. | < - 20 ~ +75℃ | |
| Storage Temp. | -40 ~ +85℃ | |
Ordering Information
| ① Connection Type | ② Model | ③ Attenuation Value |
FCP=FC/PC SCP=SC/PC ...... |
M-F=Male to Famale F-F=Female to female INL=Inline Type |
05=5dB 10=10dB |
