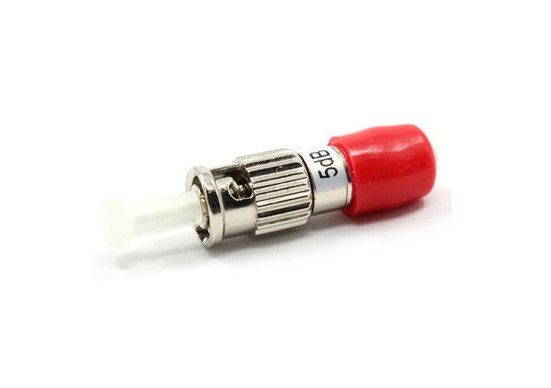

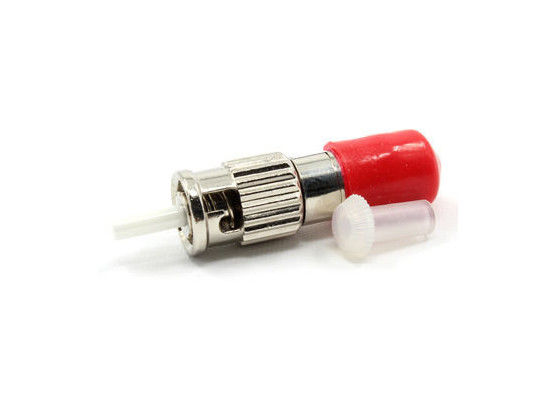

ST UPC Metal Fiber Optic Attenuator Single Mode 1 - 30db For Local Area Networks

Large Image : ST UPC Metal Fiber Optic Attenuator Single Mode 1 - 30db For Local Area Networks

Product Details:

Place of Origin:	SHENZHEN,CHINA
Brand Name:	J&K
Certification:	ISO9001:2008
Model Number:	ST/UPC Attenuator

Payment & Shipping Terms:

Minimum Order Quantity:	50PCS
Price:	Negotiation
Packaging Details:	PE bag
Delivery Time:	3~5days
Payment Terms:	L/C, T/T

Contact Now

Detailed Product Description

Product Name:	Fiber Attenuator	Wavelength:	1310nm/1490nm/1550nm
Attenuation Level Range:	0~30dB	Return Loss:	PC:≥50dB Upc≥55dB APC≥60dB
Working Temperature:	-40~75℃	Storage Temperature:	-40~85℃
Highlight:	fixed optical attenuator , voltage variable attenuator

Singlemode Metal 1 - 30db ST UPC female-male fiber optic attenuator

Features

Complied with Telcordia (GR-910-CORE and GR-1221-CORE).
Visual Tested with 800X magnification: Three Times (After Polishing, Before Assembly, Before Delivery)
100% Geometrical Inspection: Radius(10-25mm/PC), Offset(0-50um), Fiber Height(+/-50nm)
High Optical Power Endurance: up to 1000mW (=1W)
High Reliability: Specified for Over 500 mating

Applications

Fiber Optic Communication Systems
DWDM Equipment
Fiber Optic CATV
Optical LAN
Optical CATV
Local Area Networks
Optical fiber communication networks

Specifications

Item	Unit	Parameter
Operating Wavelength	Nm	1310-1550
Attenuation Range	dB	1-10Db(1Db step),15,20,25,30dB
Return Loss	dB	PC:≥50 upc≥55 APC≥60
Attenuation Tolerance	dB	≤1.0(11-30Db)
Working Temperature	ºC	-40~75
Storage Temperature	ºC	-40~85

Order Information

Connector Type	FC,SC,LC,ST,MU
Ferrule End-face	PC,UPC,APC
Type	Single Mode Multimode
Attenuation	1-10dB (1dB step),15,20,25,30
Mode	Fixed, Famle & Male, In-line, Variable
Wavelength	1310nm,1550nm,850nm,1300nm
