Plug Type LC / APC 4DB Fiber Optic Attenuator Plastic Materials For CATV System

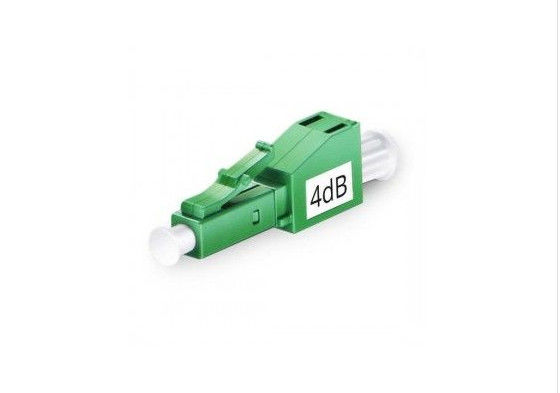

Large Image : Plug Type LC / APC 4DB Fiber Optic Attenuator Plastic Materials For CATV System

Product Details:

Place of Origin:	SHENZHEN,CHINA
Brand Name:	J&K
Certification:	ISO9001:2008
Model Number:	LC / APC Attenuator

Payment & Shipping Terms:

Minimum Order Quantity:	50PCS
Price:	Negotiation
Packaging Details:	Plastic box
Delivery Time:	3~5days
Payment Terms:	L/C, T/T

Contact Now

Detailed Product Description

Wavelength:	1310/1550nm	Product Name:	Fiber Attenuator
Polarization Dep Loss:	<0.2dB	Operating Temp:	-30~75℃
Storage Temp:	-40~85℃	Attenuation Range:	1~30dB
Highlight:	fixed optical attenuator , single mode fiber attenuator

Male-Female LCAPC Attenuator SC LC ST FC Fiber Optic Attenuator Plug type

Features

High return loss
Simple structure
Max operation power(1W)
Low wavelength relativity
Low polarization related loss
Compact design

Applications

Fiber optical distributing frame
Fiber optical network system
Hi-speed fiber optical transmission system
CATV system
Long distance DWDM system
Optical add-drop multiplexers(OADM)

Specifications

Attenuation Accuracy: +/-0.5(1-10) +/-1.0(11-30)
Operating Wavelength: SM: 1310nm, 1550nm
Polarization dependent loss: Less than 0.2dB
Maximum Optical Input Power: 200mW
Operating Temp Range: -40-80 centigrade

Ordering information:

Connector type: SC, ST, FC, LC, MU, MTRJ, DIN
Application: UPC or APC
Plug-in type or male to female type

Connector Type	SC/FC/ST/LC/MU/MTRJ
Operating Wavelength	1310,1550 nm
Attenuation Value	1dB to 10dB (±1dB), 15, 20, 25dB
Optical In-put Power	≥300 mW
Polarization Loss	≤0.20 dB
Return Loss (dB)	P Grade(Return Loss≥50dB) , A Grade(Return Loss≥40dB)
Operating Temp (degree)	-30_+75
Storage Temp (degree)	-40_+85
