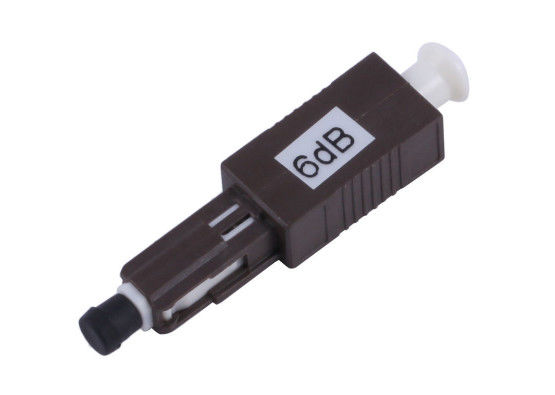

Plastic Housing Fiber Attenuator Lc , MU Connector Inline Optical Attenuator

: Large Image : Plastic Housing Fiber Attenuator Lc , MU Connector Inline Optical Attenuator

Product Details:

Place of Origin:	SHENZHEN,CHINA
Brand Name:	J&K
Certification:	ISO9001:2015
Model Number:	MU Attenuator

Payment & Shipping Terms:

Minimum Order Quantity:	50PCS
Price:	Negotiation
Packaging Details:	Plastic box
Delivery Time:	3~5days
Payment Terms:	L/C, T/T

Contact Now

Detailed Product Description

Wavelength:	1310/1550nm	Product Name:	Fiber Attenuator
Material:	Metal,Plastic	Attenuation Level Range:	0~30dB
Attenuation Range:	1~30dB	Storage Temperature:	-40~+85℃
Highlight:	fixed optical attenuator , single mode fiber attenuator

Male To Female Singlemode Fiber Optic Attenuator Plastic Housing MU Connector

Features

Single mode and Multimode
Zirconia sleeves or Phosphor bronze sleeves
NTT standard compatible
Increases panel density and quick plug in installation
Compliant with Bellcore GR-910-CORE
All parts compliant with ROHS

Applications

Telecommunication
CATV
LAN & WAN
Network
Broadband
FTTP.

Specifications

Parameter	Unit	Specification
Return Loss	dB	≥45dB(SPC),
		≥55dB(UPC),
		≥60dB(APC)
Attenuation Tolerance	dB	1-5dB<± 0.5 dB
		5-10dB<±10%
		11-25dB<± 5%
Operating Wavelength	nm	1310±10
		1550±10
		1310 and 1550±10
Storage temperature	°C	-40~+85
