Male - Female Fiber Optic Attenuator Single Core 1 - 30dB Metal Material

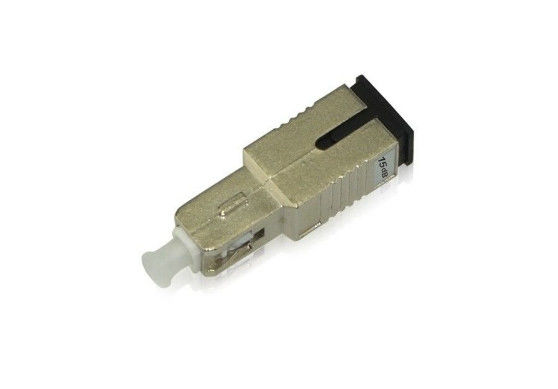

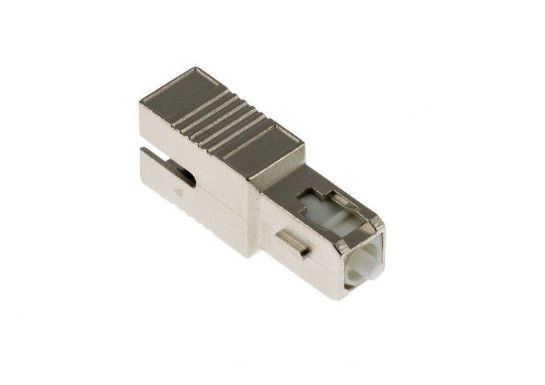

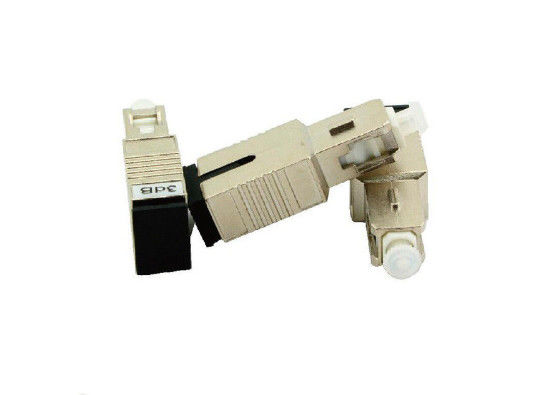

Large Image : Male - Female Fiber Optic Attenuator Single Core 1 - 30dB Metal Material

Product Details:

Place of Origin:	SHENZHEN,CHINA
Brand Name:	J&K
Model Number:	SC UPC SM Attenuator

Payment & Shipping Terms:

Minimum Order Quantity:	50PCS
Price:	Negotiation
Packaging Details:	PE bag
Delivery Time:	3~5days
Payment Terms:	L/C, T/T

Contact Now

Detailed Product Description

Wavelength:	1310/1550nm	Product Name:	Fiber Attenuator
Attenuation Level Range:	0~30dB	Attenuation Range:	1~30dB
Operating Temperature:	-40~85℃	Storage Temperature:	-40~85℃
Highlight:	fixed optical attenuator , voltage variable attenuator

SC / UPC Singlemode Fixed Fiber Optic Attenuator, Male-Female, 1-30dB

Features

Low PDL and insertion loss
Precision polishing for reduced back reflection
Highly Reliable Physical Contact Connectors
Compartmentalized case provides safe component storage and simple organization
Small, durable case for easy portability

Applications

Wide-Area networks;
Telecommunication networks;
Gigabit applications (ATM, Ethernet).

Specifications

Parameters		Min.	Typical	Max	Unit
Operating Wavelength Range		1310 ± 40			nm
		1550 ± 40			nm
Return Loss	PC Type	50			dB
	APC Type	65			dB
Operating Temperature		-40		85	°C
Tolerance		DB≤10 dB =±0.5&DB≥10 dB =±0.75
Storage Temperature		-40		85	°C
