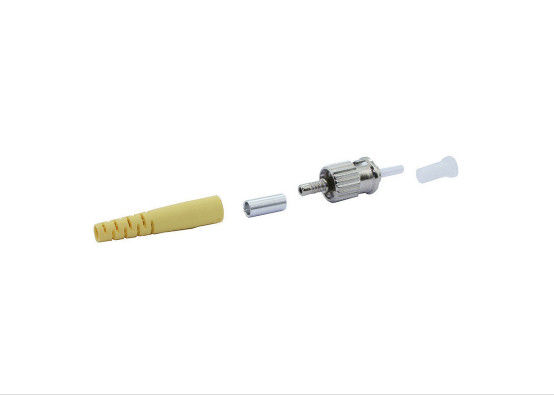

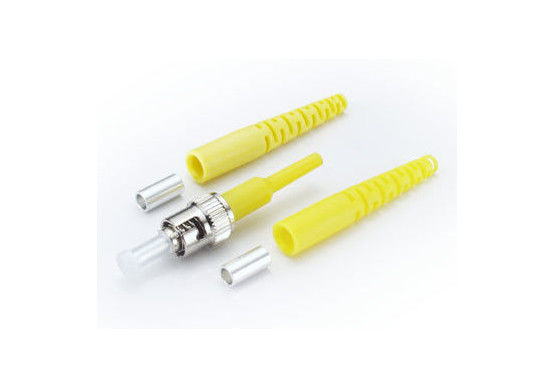

Yellow Boot Fast Connect Fiber Connectors , ST / UPC 2.0mm Duplex Sc Fiber Optic Connector

Large Image : Yellow Boot Fast Connect Fiber Connectors , ST / UPC 2.0mm Duplex Sc Fiber Optic Connector

Product Details:

Place of Origin:	SHENZHEN,CHINA
Brand Name:	J&K
Certification:	IS09001-2008.ROHS
Model Number:	ST/UPC Connector

Payment & Shipping Terms:

Minimum Order Quantity:	1000PCS
Price:	Negotiation
Packaging Details:	PE bag
Delivery Time:	3~5days
Payment Terms:	L/C, T/T

Contact Now

Detailed Product Description

Product Name:	Fiber Optic SC APC Fast Connector	Color:	Yellow
Application:	FTTH FTTB FTTX Network	Connector Type:	ST/UPC
Return Loss:	≥50dB	Insert Loss:	<0.2dB
Highlight:	quick connect fiber optic connectors , terminate fiber lc connector

singlemode simplex fiber optic cable st / upc connector long 2.0mm yellow boot

Product Description

Fiber optic connectors are unique. Fiber cables transmit pulses of light instead of electrical signals, so the terminations must be much more precise. Instead of merely allowing pins to make metal-to-metal contact, fiber optic connectors must align microscopic glass fibers perfectly in order to allow for communication. While there are many different types of fiber connectors, they share similar design characteristics. Simplex vs. duplex: Simplex means 1 connector per end while duplex means 2 connectors per end. There are three major components of a fiber connector: the ferrule, the connector body, and the coupling mechanism.

Applications

Local Area Networks (LANs)
Data Processing Networks
Premise Installations
Instrumentation

FEATURE

Bayonet style housing for easy termination
Epoxy and epoxy-less versions
High precision alignment
Low insertion Loss
High return Loss

Parameter

Item	Single mode	APC	Multi mode
Insertion Loss	≤0.3db
Durability	0.2db Max
Operating temperature	-40 ºC to +75 ºC
Storage temperature	-40 ºC to +75 ºC
Remark	Ferrule concentricity SM <1um; MM <4um
	Ferrule inner diameter tolerance : SM125+1/-0um; MM127+3/-0um
	Ferrule outer diameter tolerance : ±0.5um
