Product Details:
Payment & Shipping Terms:
|
| Product Name: | Fiber Optic Connector | Application: | FTTH FTTB FTTX Network |
|---|---|---|---|
| Connector Type: | SC/UPC | Operating Temperature: | -20~70℃ |
| Return Loss: | UPC≥50dB,APC≥60dB | Storage Temperature: | - 40ºC To +85ºC |
| Highlight: | plastic fiber optic cable connectors,quick connect fiber optic connectors |
||

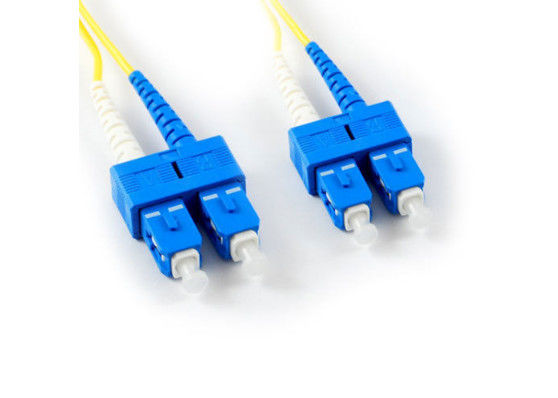

SC / UPC Singlemode DX 2.0 / 3.0mm Fiber Optic cable Connector
Applications
Specifications
| ITEM | PARAMETER | |
| Applicative Connector Type | SC,LC,FC,ST,MU,D4,DIN | |
| Fiber mode | Single mode | Multi-mode |
| Test wavelength | 1310nm, 1550nm | 850nm, 1300nm |
| Insertion Loss | typical≤0.20dB,Max≤0.30dB | typical≤0.15dB,Max≤0.25dB |
| Return Loss | UPC≥50.0dB,APC≥60.0dB | ≥35.0dB |
| Durability | ≤0.20dB typical change,1000 mating | |
| Applicative cable OD. | ∮0.9mm/∮1.8mm&∮2.0mm /∮3.0mm (MU only ∮0.9mm/∮2.0mm) | |
| Connector Ferrule OD. | ∮2.5mm:SC, FC,ST,DIN; ∮2.0mm:D4; ∮1.25mm:LC,MU | |
| Angle BOOT | SC,LC(45 or 90 degree) | |
| Operating Temperature | -20ºC to +70ºC | |
| Storage Temperature | - 40ºC to +85ºC | |
| Ferrule Specification | 125.3+1/-0μm, Concentricity: ≤1.0μm | 127+3/-0μm, Concentricity: ≤3.0μm |
ORDERING OPTIONS
| Housing Color | Ferrule I.D. | Boot Size | Boot Type | Boot Color | Dust Cap Type |
| Beige | 125.0μm | 0.9mm | slotted | Beige | Ferrule cap |
| Blue | 125.5μm | 2.0mm | smooth | Black | |
| Brown | 126.0μm | Blue | |||
| Red | 127.0μm | Green | |||
| Yellow | Yellow |
