50 / 125um Mtp Mpo Fiber Connector , PC Ferrule End Face Lc Lc Fiber Connector

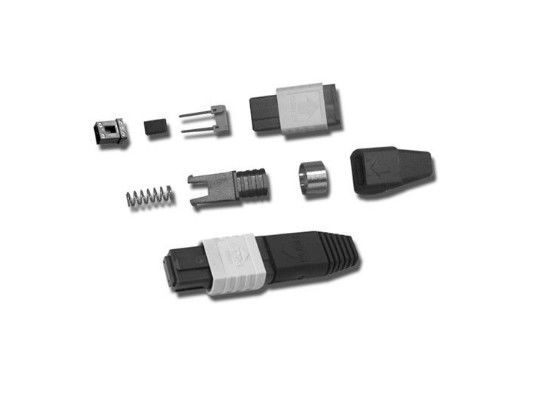

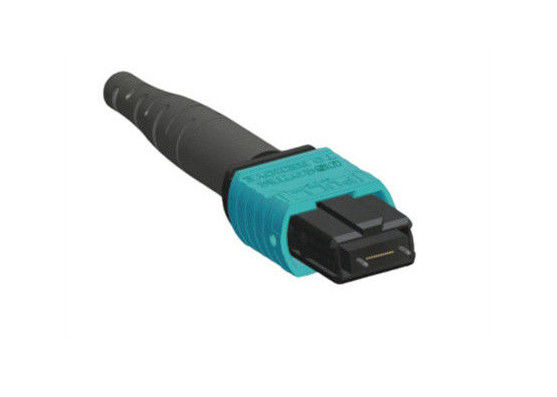

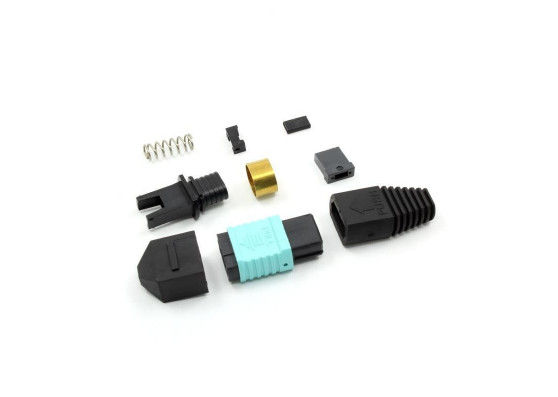

Large Image : 50 / 125um Mtp Mpo Fiber Connector , PC Ferrule End Face Lc Lc Fiber Connector

Product Details:

Place of Origin:	SHENZHEN,CHINA
Brand Name:	J&K
Certification:	IS09001-2008.ROHS
Model Number:	MPO SM Connector

Payment & Shipping Terms:

Minimum Order Quantity:	1000PCS
Price:	Negotiation
Packaging Details:	PE bag
Delivery Time:	3~5days
Payment Terms:	L/C, T/T

Contact Now

Detailed Product Description

Insertion Loss:	≤ 0.3dB	Product Name:	Fiber Optic Connector
Application:	FTTH FTTB FTTX Network	Operating Temperature:	-20~70℃
Return Loss:	APC≥50.0dB	Type:	PC/APC
Highlight:	quick connect fiber optic connectors , terminate fiber lc connector

MPO / MTP Fiber Optic singlemode 50/125um optic fiber cable Connector

Features

IEC 61754-7 Compliant
Compact design, up to 24 fiber ribbon
Polishing does not require diamond film
High precision guide pins for exact alignment
Precision molded MT ferrule
Telcordia GR-1435-CORE compliant
Low IL reflection loss

Applications

Active device interface
Premise installations
Interconnection for O/E modules
Data processing networks
Telecommunication networks
Optical switch interframe connection
Asynchronous Transmission Mode (ATM)

Specifications

ITEM	Parameter
ITEM	Single-mode(APC)	Multi-mode(PC)
Test wavelength	1310nm, 1550nm	850nm, 1300nm
Insertion Loss	typical≤0.50dB,Max≤0.70dB	typical≤0.40dB,Max≤0.50dB
Return Loss	APC≥50.0dB	/
Durability	≤0.30dB typical change,200 mating
Operating Temperature	-20ºC to +70ºC
Ferrule Specification	125.0+1/-0μm, Concentricity: ≤1.0μm	127μm, Concentricity: ≤1.4μm
Ferrule holes	4,6,8,12,24-fiber
