Product Details:
Payment & Shipping Terms:
|
| Product Name: | Fiber Optic Connector | Application: | FTTH FTTB FTTX Network |
|---|---|---|---|
| Insert Loss: | ≤0.3dB | Return Loss: | ≥60dB |
| Operating Temperature: | -45 To +85℃ | Durability: | ≤ 0.2db Typical Change |
| Highlight: | quick connect fiber optic connectors,terminate fiber lc connector |
||
Sc Multimode Duplex Fiber Optic Connector - Telecom / Network Grade
APPLICATIONS
STANDARDS
All components of/and the final product are designed and tested to conform the requirements of IEC 60874-7, CECC 86115-801, Bellcore/Telcordia GR-326, EIA/TIA 604-3A, EIA/TIA 568, ISO/IEC 11801 2nd Ed., EN 50173, JIS C5973 F04, ICEA-596, IEC60793-2-10 A1a, ITU-T G.651 or IEC60793-2-10 A1b or ITU-T G.652 (depending on fiber), Belcore/Telcordia GR-409-CORE, IEC 793, IEC 794-1-E1, IEC 794-1-E3, UL1666/901 (UL-cable) and EIA/TIA455.
AVAILABILITY

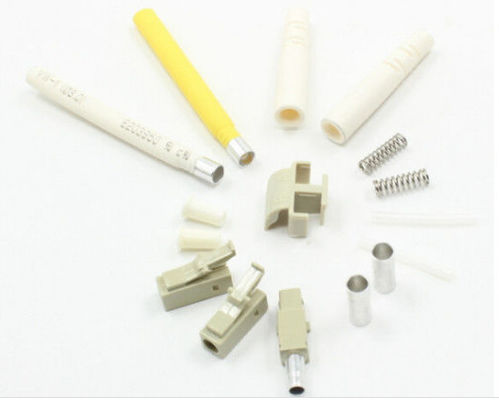

The connector can be supplied as a pre-assembled one-piece connector or as connector kits.
Clips are available for duplex connectors
Housing kits without ferrule are available.
SPECIFICATIONS
| Insertion Loss | ≤0.30dB |
| Return Loss | ≥60 dB |
| Durability | ≤0.2 dB typical change, 1000 matings |
| Operating Temperature | -40 to + 85°C |
| Ferrule Hole Sizes | 125.0+1/-0μm, Concentricity: ≤0.5μm |
| 125.5+1/-0μm, Concentricity: ≤0.5μm | |
| 126.0+1/-0μm, Concentricity: ≤0.5μm |
